Home > Products > Power Supplies - Board Mount > DC DC Converters > V7806-1000-SMT-TR

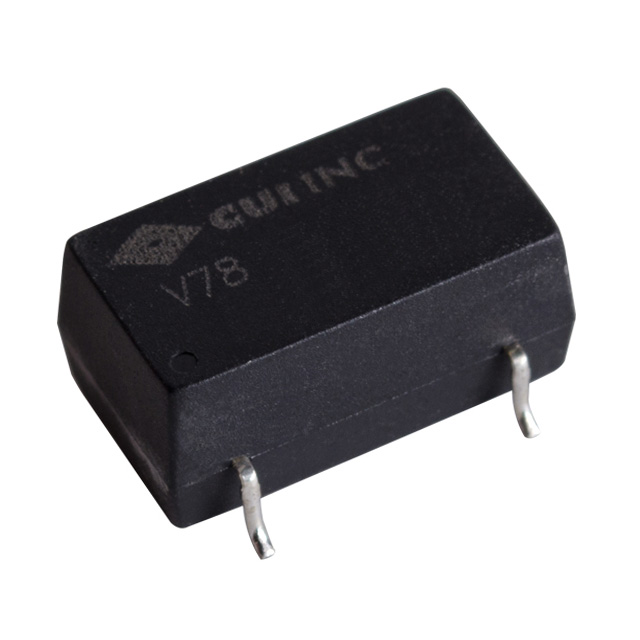

V7806-1000-SMT-TR

V7806-1000-SMT-TR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy V7806-1000-SMT-TR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	V7806-1000-SMT-TR
Manufacturer	CUI, Inc.
Description	DC DC CONVERTER 6.5V 7W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 15629 pcs
Reference Price (In US Dollars)	500 pcs
Reference Price (In US Dollars)	$2.491

Product parameter
Data sheet

Product parameter

Part Number	V7806-1000-SMT-TR	Manufacturer	CUI, Inc.
Description	DC DC CONVERTER 6.5V 7W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15629 pcs	Data sheet	V780x-1000-SMT
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	-	Voltage - Output 1	6.5V
Voltage - Input (Min)	8.5V	Voltage - Input (Max)	18V
Type	Linear Regulator Replacement	Size / Dimension	0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
Series	V78-1000-SMT	Power (Watts)	7W
Packaging	Tape & Reel (TR)	Package / Case	10-SMD Module, 6 Leads
Other Names	102-2506-2 V7806-1000-SMT V78061000SMTTR	Operating Temperature	-40°C ~ 85°C
Number of Outputs	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Remote On/Off, OTP, SCP
Efficiency	92%	Detailed Description	Linear Regulator Replacement DC DC Converter 1 Output 6.5V 1A 8.5V - 18V Input
Current - Output (Max)	1A	Control Features	Enable, Active High
California Prop 65	Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.	Applications	ITE (Commercial)
