Home > Products > Connectors, Interconnects > Barrel - Audio Connectors > SR-3530-01

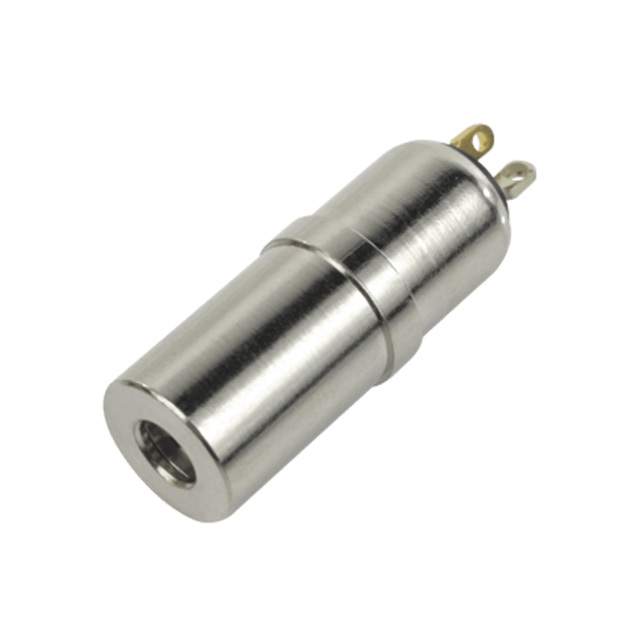

SR-3530-01

SR-3530-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SR-3530-01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number SR-3530-01
Manufacturer CUI, Inc.
Description AUDIO JACK, 3.5 MM, STRAIGHT, 3
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 90405 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs25 pcs50 pcs100 pcs
$0.466$0.41$0.386$0.37$0.354
250 pcs500 pcs1000 pcs2500 pcs
$0.322$0.29$0.258$0.233

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.466

Product parameter

Part Number SR-3530-01 Manufacturer CUI, Inc.
Description AUDIO JACK, 3.5 MM, STRAIGHT, 3 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 90405 pcs Data sheet SR-3530-01 Datasheet
Category Connectors, Interconnects Voltage - Rated 12VDC
Thread Size - Termination Solder Eyelet(s)
Signal Lines Stereo (3 Conductor, TRS) Shielding Unshielded
Series - Panel Hole Size -
Packaging Bulk Other Names 102-4740
Operating Temperature -25°C ~ 70°C Number of Positions/Contacts 3 Conductors, 3 Contacts
Mounting Type Free Hanging (In-Line) Moisture Sensitivity Level (MSL) Not Applicable
Mating Length/Depth 0.551" (14.00mm) Manufacturer Standard Lead Time 7 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Internal Switch(s) Does Not Contain Switch
Insulation Color Black Industry Recognized Mating Diameter 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Includes - Housing Material Brass
Gender Female Features Grounding Tab
Detailed Description 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s) Current Rating 1A
Contact Material - Plating Gold Contact Material Phosphor Bronze
Connector Type Phone Jack California Prop 65 Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.
Cable Opening - Body Material Brass
Body Color Silver Actual Diameter 0.142" (3.60mm)
