SJ2-2564C-SMT-TR

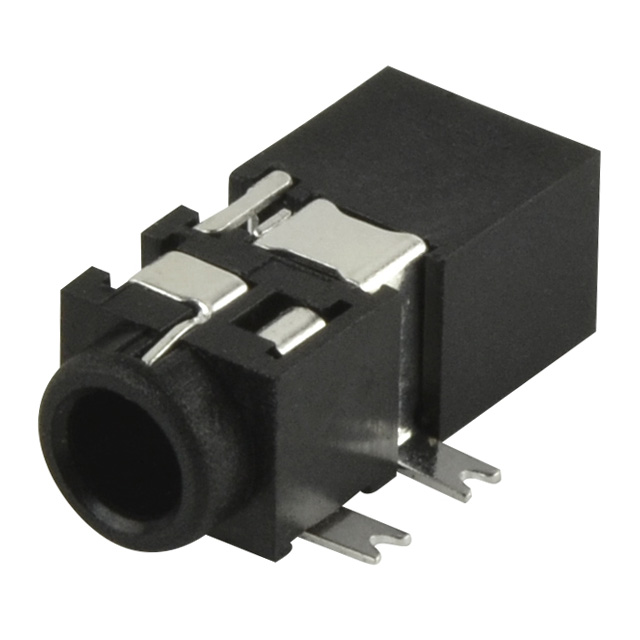

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJ2-2564C-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJ2-2564C-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJ2-2564C-SMT-TR |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | AUDIO JACK, 2.5 MM, RT, 4 CONDUC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | 5000 pcs | 10000 pcs |
|---|---|---|---|---|---|
| $0.253 | $0.237 | $0.229 | $0.221 | $0.21 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SJ2-2564C-SMT-TR | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | AUDIO JACK, 2.5 MM, RT, 4 CONDUC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 111959 pcs | Data sheet | SJ2-256X-SMT Series Datasheet |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | SJ2 | Panel Hole Size | - |
| Packaging | Tape & Reel (TR) | Other Names | CP-SJ2-2564C-SMT-TR |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 3 Conductors, 4 Contacts |
| Mounting Type | Surface Mount, Right Angle | Mating Length/Depth | 0.433" (11.00mm) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone | Includes | - |
| Housing Material | Polyamide (PA10T), Nylon 10T | Gender | Female |
| Features | Board Guide | Detailed Description | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder |
| Current Rating | 1A | Contact Material - Plating | Silver |
| Contact Material | Brass; Copper Alloy | Connector Type | Phone Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Cable Opening | - |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.102" (2.60mm) |
