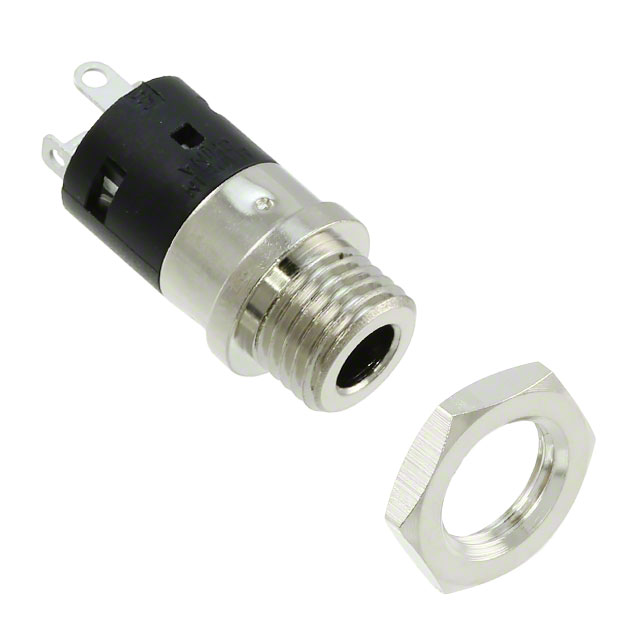

SJ1-43502PM
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJ1-43502PM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJ1-43502PM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJ1-43502PM |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK 3COND 3.5MM PNL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.82 | $0.743 | $0.698 | $0.668 | $0.637 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.576 | $0.531 | $0.455 | $0.425 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SJ1-43502PM | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK 3COND 3.5MM PNL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85384 pcs | Data sheet | SJ1-43502PM Datasheet |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder Eyelet(s) |
| Signal Lines | Stereo (4 Conductor, TRRS) | Shielding | Unshielded |
| Series | - | Panel Hole Size | - |
| Packaging | Bulk | Other Names | CP-SJ1-43502PM |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 4 Conductors, 4 Contacts |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | 0.551" (14.00mm) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes | 2 pcs - 1 Connector, 1 Nut | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Gender | Female | Features | Mounting Hardware |
| Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder Eyelet(s) | Current Rating | 1A |
| Contact Material - Plating | Tin | Contact Material | Copper Alloy |
| Connector Type | Phone Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening | - | Body Material | Brass |
| Body Color | Silver, Black | Actual Diameter | 0.142" (3.60mm) |
