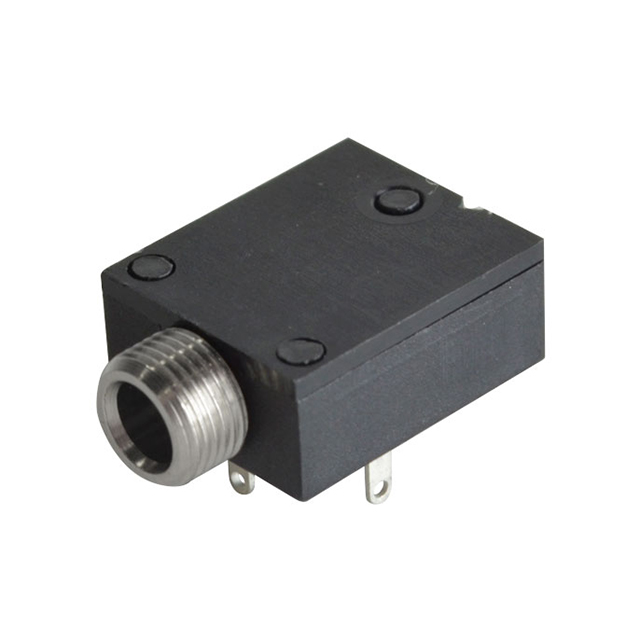

SJ1-3514
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJ1-3514 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJ1-3514 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJ1-3514 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK STEREO 3.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 170 pcs |
|---|---|---|---|---|---|
| $0.595 | $0.538 | $0.506 | $0.484 | $0.462 | |
| 340 pcs | 510 pcs | 1020 pcs | 2550 pcs | ||
| $0.418 | $0.385 | $0.33 | $0.308 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SJ1-3514 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK STEREO 3.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69155 pcs | Data sheet | SJ1-351x |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | M6 | Termination | Solder Eyelet(s) |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | SJ1 | Panel Hole Size | 0.236" (5.99mm) |
| Packaging | Bulk | Other Names | 045-0968R CP1-3514 SJ13514 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 3 Conductors, 4 Contacts |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | 0.551" (14.00mm) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes | 2 pcs - 1 Connector, 1 Nut | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Female | Features | Mounting Hardware, Thread Lock |
| Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s) | Current Rating | 1A |
| Contact Material - Plating | Tin | Contact Material | Brass |
| Connector Type | Phone Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening | - | Body Material | Brass |
| Body Color | Silver, Black | Actual Diameter | 0.142" (3.60mm) |
