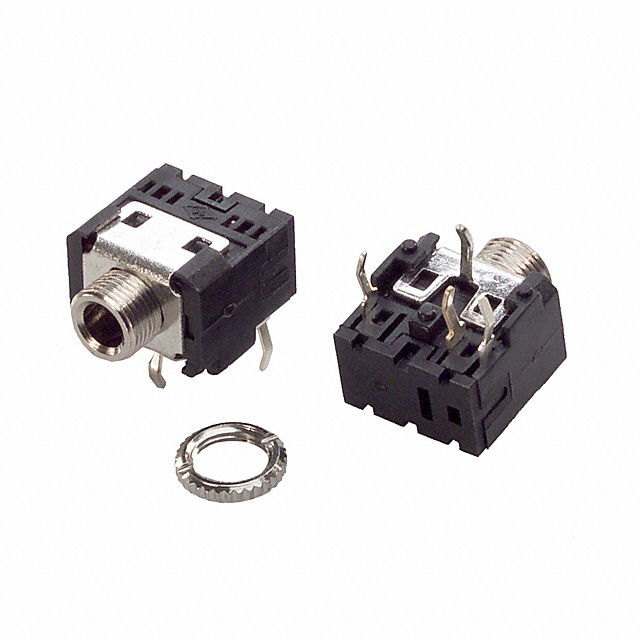

SJ-3544
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJ-3544 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJ-3544 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJ-3544 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK STEREO 3.5MM R/A |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SJ-3544 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK STEREO 3.5MM R/A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5829 pcs | Data sheet | SJ-3544 |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | M6 | Termination | Kinked Pin |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | - | Panel Hole Size | 0.236" (5.99mm) |
| Packaging | Bulk | Other Names | CP-3544 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 3 Conductors, 4 Contacts |
| Mounting Type | Through Hole, Right Angle | Mating Length/Depth | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Internal Switch(s) | Single Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Female | Features | Thread Lock |
| Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Kinked Pin | Current Rating | 1A |
| Contact Material - Plating | Nickel | Contact Material | Brass |
| Connector Type | Phone Jack | Cable Opening | - |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.142" (3.60mm) |
