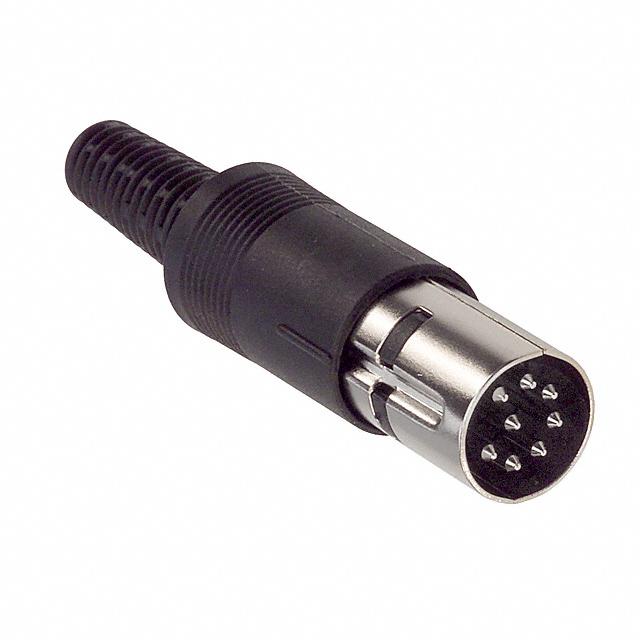

SD-80
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD-80 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SD-80 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD-80 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN PLUG MALE DIN 8POS SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.822 | $0.746 | $0.701 | $0.67 | $0.64 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.579 | $0.533 | $0.457 | $0.427 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SD-80 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PLUG MALE DIN 8POS SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79146 pcs | Data sheet | SD Series |
| Category | Connectors, Interconnects | Voltage Rating | 100VAC, 12VDC |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | DIN (270 Degree) |
| Shell Material | Steel | Shell Finish | Nickel |
| Series | SD | Packaging | Bulk |
| Other Names | 045-0244R CP-1080 SD80 |
Orientation | Keyed |
| Operating Temperature | 5°C ~ 70°C | Number of Positions | 8 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polybutylene Terephthalate (PBT) | Ingress Protection | - |
| Features | Strain Relief | Fastening Type | Push-Pull |
| Detailed Description | 8 Position Circular Connector Plug, Male Pins Solder Cup Nickel | Current Rating | 1A, 2A |
| Contact Material | Brass | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Nickel | Connector Type | Plug, Male Pins |
| Color | Black, Silver | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | - |
