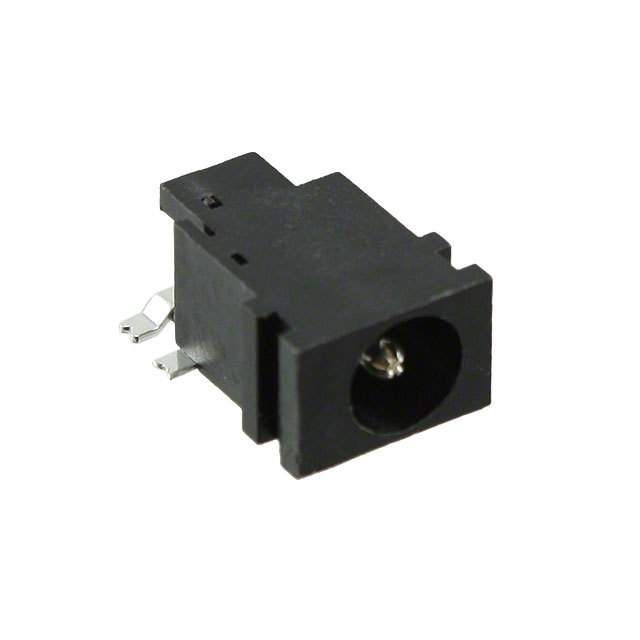

PJ1-021-SMT-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJ1-021-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJ1-021-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJ1-021-SMT-TR |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN PWR JACK 1.75X4.75MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.325 | $0.287 | $0.27 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.259 | $0.247 | $0.225 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PJ1-021-SMT-TR | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PWR JACK 1.75X4.75MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 89151 pcs | Data sheet | PJ1-021-SMT-TR |
| Category | Connectors, Interconnects | Voltage - Rated | 24VDC |
| Thread Size | - | Termination | Solder |
| Shielding | Unshielded | Series | - |
| Packaging | Original-Reel® | Other Names | CP1-021PJDKR |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Surface Mount, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | 0.315" (8.00mm) |
| Material Flammability Rating | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch, Normally Closed | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | 1.75mm ID (0.068"), 4.75mm OD (0.187") |
| Includes | - | Housing Material | Polyamide (PA6T), Nylon 6T |
| Gender | Male | Features | Board Guide |
| Detailed Description | Power Barrel Connector Jack 1.75mm ID (0.068"), 4.75mm OD (0.187") Surface Mount, Right Angle | Current Rating | 5A |
| Contact Material - Plating | Silver | Contact Material | Brass; Copper Alloy |
| Connector Type | Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.065" (1.65mm ID), 0.203" (5.15mm OD) |
