Home > Products > Connectors, Interconnects > Barrel - Power Connectors > PJ-057B

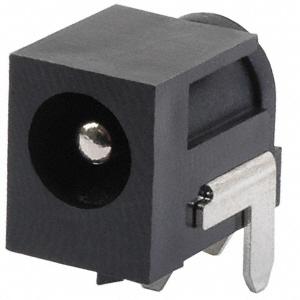

PJ-057B

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJ-057B with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PJ-057B
Manufacturer	CUI, Inc.
Description	CONN PWR JACK 2.5X5.5MM SOLDER
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 90115 pcs
Reference Price (In US Dollars)	500 pcs
Reference Price (In US Dollars)	$0.236

Product parameter
Data sheet

Product parameter

Part Number	PJ-057B	Manufacturer	CUI, Inc.
Description	CONN PWR JACK 2.5X5.5MM SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	90115 pcs	Data sheet	PJ-057B
Category	Connectors, Interconnects	Voltage - Rated	24VDC
Thread Size	-	Termination	Solder
Shielding	Unshielded	Series	-
Packaging	Bulk	Other Names	CP-057B
Operating Temperature	-25°C ~ 85°C	Number of Positions/Contacts	2 Conductors, 3 Contacts
Mounting Type	Through Hole, Right Angle	Mounting Feature	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Length/Depth	0.360" (9.15mm)
Material Flammability Rating	UL94 V-0	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Single Switch, Normally Closed	Insulation Color	-
Ingress Protection	-	Industry Recognized Mating Diameter	2.50mm ID (0.098"), 5.50mm OD (0.217")
Includes	-	Housing Material	Polybutylene Terephthalate (PBT)
Gender	Male	Features	Board Guide
Detailed Description	Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle	Current Rating	2.5A
Contact Material - Plating	Tin	Contact Material	Brass; Copper Alloy
Connector Type	Jack	California Prop 65	Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.
Body Material	-	Body Color	Black
Actual Diameter	0.098" (2.50mm ID), 0.248" (6.30mm OD)
