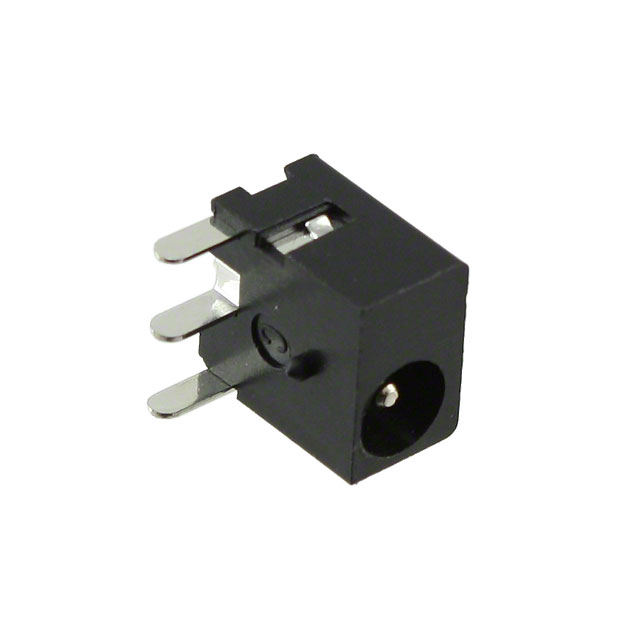

PJ-014D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJ-014D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJ-014D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJ-014D |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN PWR JACK 1.3X3.4MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.228 | $0.214 | $0.193 | $0.171 | $0.164 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.15 | $0.143 | $0.118 | $0.107 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PJ-014D | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PWR JACK 1.3X3.4MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 209457 pcs | Data sheet | PJ-014D |
| Category | Connectors, Interconnects | Voltage - Rated | 24VDC |
| Thread Size | - | Termination | Solder |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Other Names | 045-0470R CP-014D PJ-014D-ND PJ014D Q1045043 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Mating Length/Depth | 0.283" (7.20mm) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch, Normally Closed | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | 1.30mm ID (0.051"), 3.40mm OD (0.134") |
| Includes | - | Housing Material | Thermoplastic |
| Gender | Male | Features | Board Guide |
| Detailed Description | Power Barrel Connector Jack 1.30mm ID (0.051"), 3.40mm OD (0.134") Through Hole, Right Angle | Current Rating | 2.5A |
| Contact Material - Plating | Tin | Contact Material | Brass; Copper Alloy |
| Connector Type | Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.051" (1.30mm ID), 0.165" (4.20mm OD) |
