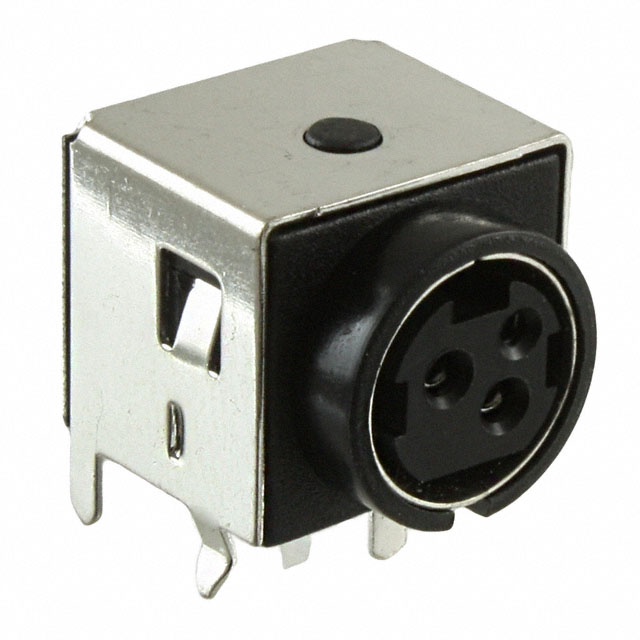

PD-30S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PD-30S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PD-30S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PD-30S |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK FMALE DIN 3POS SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.979 | $0.94 | $0.862 | $0.823 | $0.784 | |
| 250 pcs | 680 pcs | 1360 pcs | 2720 pcs | ||
| $0.686 | $0.666 | $0.568 | $0.529 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PD-30S | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK FMALE DIN 3POS SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73748 pcs | Data sheet | PD-30S |
| Category | Connectors, Interconnects | Voltage Rating | 20VDC |
| Termination | Solder | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | DIN |
| Shell Material | Polybutylene Terephthalate (PBT) | Shell Finish | - |
| Series | PD-S | Packaging | Tray |
| Other Names | 045-1317R CP-7230 PD30S |
Orientation | Keyed |
| Operating Temperature | - | Number of Positions | 3 (Power) |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | - |
| Features | Board Lock, Ground | Fastening Type | Push-Pull |
| Detailed Description | 3 (Power) Position Circular Connector Jack, Female Sockets Solder Tin | Current Rating | 7.5A |
| Contact Material | Brass, Phosphor Bronze | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Tin | Connector Type | Jack, Female Sockets |
| Color | Black, Silver | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | - |
