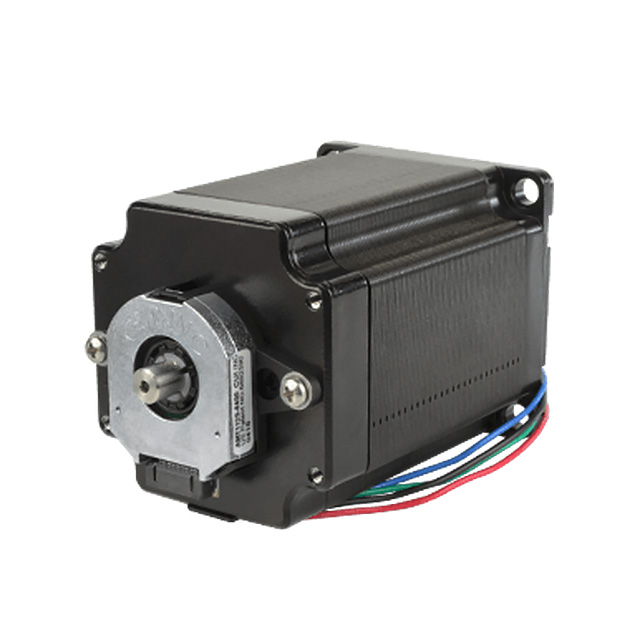

NEMA23-17-01SD-AMT112S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NEMA23-17-01SD-AMT112S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NEMA23-17-01SD-AMT112S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NEMA23-17-01SD-AMT112S |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | STEPPER MOTOR W/ INCREMENTAL ENC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $47.67 | $46.596 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NEMA23-17-01SD-AMT112S | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | STEPPER MOTOR W/ INCREMENTAL ENC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 782 pcs | Data sheet | NEMA23-AMT112S Series Datasheet |
| Category | Motors, Solenoids, Driver Boards/Modules | Voltage - Rated | 24 ~ 80VDC |
| Type | - | Torque - Holding (oz-in / mNm) | 85 / 600.23 |
| Termination Style | Connector | Steps per Revolution | 200 |
| Step Angle | 1.8° | Size / Dimension | Square - 2.252" x 2.252" (57.20mm x 57.20mm) |
| Series | NEMA23-AMT112S | Rotor Inertia | 3.1gcm² |
| Other Names | 102-4724 | Operating Temperature | -20°C ~ 50°C |
| NEMA Frame Size | 23 | Mounting Hole Spacing | 1.819" (46.20mm) |
| Moisture Sensitivity Level (MSL) | Not Applicable | Manufacturer Standard Lead Time | 10 Weeks |
| Length - Shaft and Bearing | 0.811" (20.60mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Flatted Shaft | Diameter - Shaft | 0.250" (6.35mm) |
| Detailed Description | Bipolar Stepper Motor Frame Size 23 200 Step 1.4A 24 ~ 80VDC | Current Rating | 1.4A |
| Coil Type | Bipolar | Coil Resistance | 2.8 Ohms |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Approvals | CE |
| Accuracy | ±0.2% |
