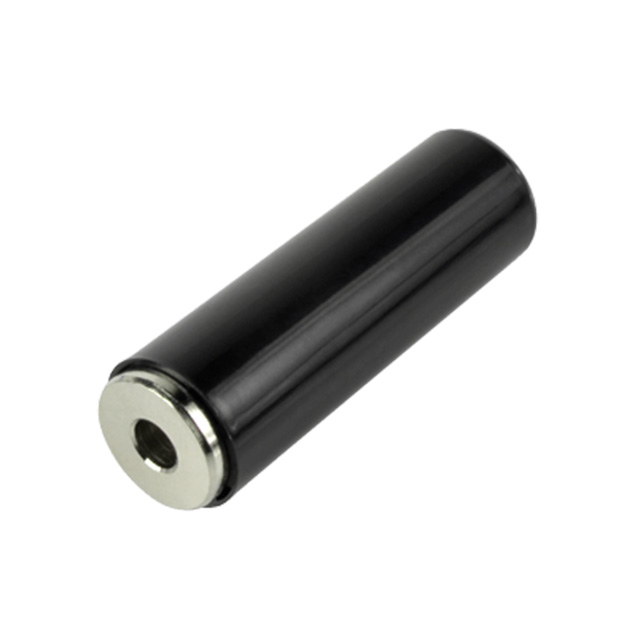

MR-3530A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MR-3530A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MR-3530A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MR-3530A |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | AUDIO JACK, 3.5 MM, STRAIGHT, 3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.576 | $0.523 | $0.491 | $0.47 | $0.448 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.406 | $0.374 | $0.32 | $0.299 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MR-3530A | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | AUDIO JACK, 3.5 MM, STRAIGHT, 3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77341 pcs | Data sheet | MR-3530A Datasheet |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | - | Panel Hole Size | - |
| Packaging | Bulk | Other Names | 102-4763 |
| Operating Temperature | -25°C ~ 70°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Mating Length/Depth | 0.551" (14.00mm) | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | White | Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes | 2 pcs - 1 Connector, 1 Cover | Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Gender | Female | Features | Cover |
| Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder | Current Rating | 1A |
| Contact Material - Plating | Gold | Contact Material | Phosphor Bronze |
| Connector Type | Phone Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening | 0.228" (5.80mm) | Body Material | Brass |
| Body Color | Silver, Black | Actual Diameter | 0.142" (3.60mm) |
