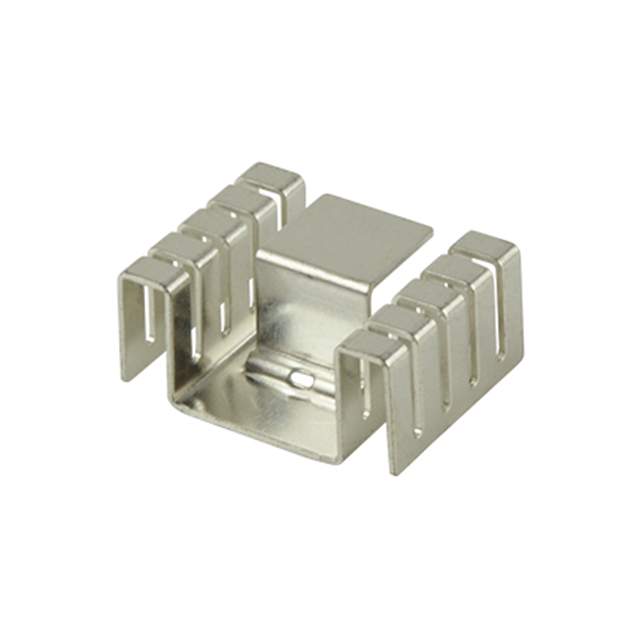

HSS-C2540-SMT-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HSS-C2540-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HSS-C2540-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HSS-C2540-SMT-TR |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | HEAT SINK, STAMPING, TO-263, 19. |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 150 pcs | 300 pcs | 750 pcs | 1050 pcs | 7500 pcs |
|---|---|---|---|---|---|
| $0.57 | $0.537 | $0.503 | $0.47 | $0.453 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | HSS-C2540-SMT-TR | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | HEAT SINK, STAMPING, TO-263, 19. | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66633 pcs | Data sheet | HSS-C2540-SMT-TR Datasheet |
| Category | Fans, Thermal Management | Width | 1.000" (25.40mm) |
| Type | Board Level | Thermal Resistance @ Natural | 21.90°C/W |
| Thermal Resistance @ Forced Air Flow | 5.50°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 3.8W @ 75°C |
| Package Cooled | TO-220 | Other Names | 102-4189-2 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Tin |
| Material | Copper | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 0.763" (19.38mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.450" (11.43mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Copper 3.8W @ 75°C Board Level | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Attachment Method | - |
