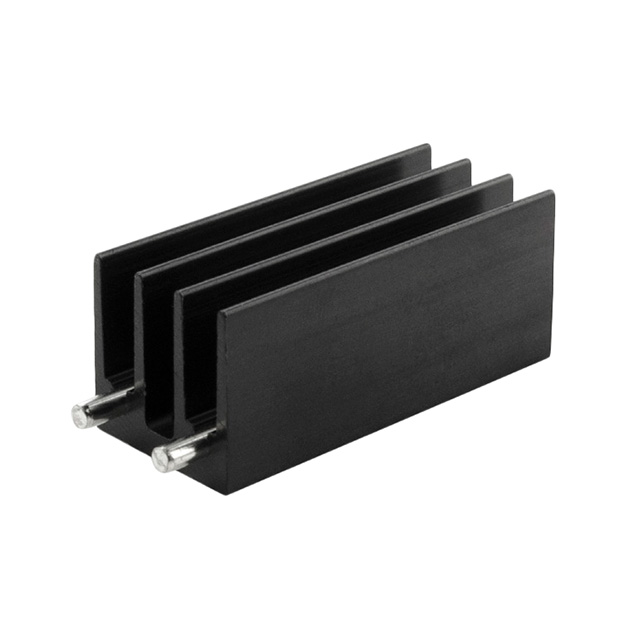

HSE-B254-04H
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HSE-B254-04H with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HSE-B254-04H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HSE-B254-04H |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | HEAT SINK, EXTRUSION, TO-220/TO- |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.26 | $0.249 | $0.236 | $0.23 | $0.227 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.211 | $0.199 | $0.18 | $0.174 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HSE-B254-04H | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | HEAT SINK, EXTRUSION, TO-220/TO- | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 132470 pcs | Data sheet | HSE-Bx-04H Series Datasheet |
| Category | Fans, Thermal Management | Width | 0.650" (16.50mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 15.96°C/W |
| Thermal Resistance @ Forced Air Flow | 4.93°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | HSE | Power Dissipation @ Temperature Rise | 4.7W @ 75°C |
| Package Cooled | TO-218, TO-220 | Other Names | 102-4227 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum Alloy | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 1.000" (25.40mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.630" (16.00mm) | Diameter | - |
| Detailed Description | Heat Sink TO-218, TO-220 Aluminum Alloy 4.7W @ 75°C Board Level, Vertical | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Attachment Method | PC Pin |
