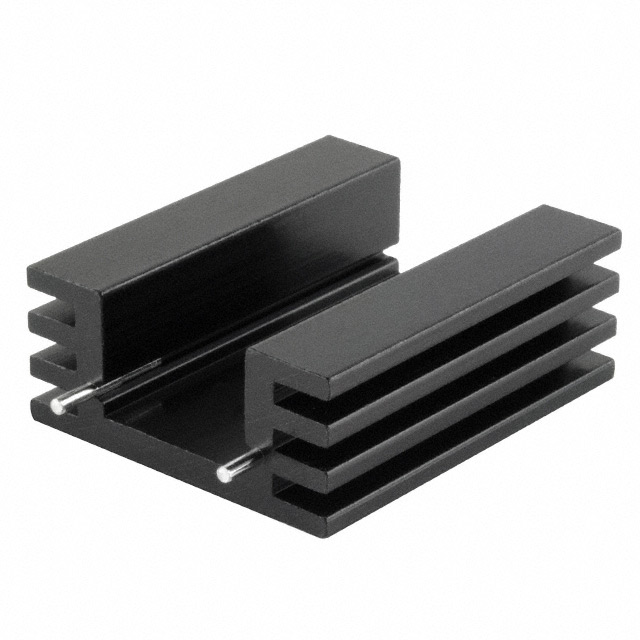

HSE-B20254-040H
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HSE-B20254-040H with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HSE-B20254-040H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HSE-B20254-040H |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | HEAT SINK, EXTRUSION, TO-220, 25 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.291 | $0.277 | $0.263 | $0.256 | $0.253 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.236 | $0.222 | $0.201 | $0.194 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HSE-B20254-040H | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | HEAT SINK, EXTRUSION, TO-220, 25 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 117383 pcs | Data sheet | HSE-Bx-040H Series Datasheet |
| Category | Fans, Thermal Management | Width | 1.260" (32.00mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 13.16°C/W |
| Thermal Resistance @ Forced Air Flow | 7.74°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | HSE | Power Dissipation @ Temperature Rise | 5.7W @ 75°C |
| Package Cooled | TO-220 | Other Names | 102-4240 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum Alloy | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 1.000" (25.40mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.551" (14.00mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum Alloy 5.7W @ 75°C Board Level, Vertical | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Attachment Method | PC Pin |
