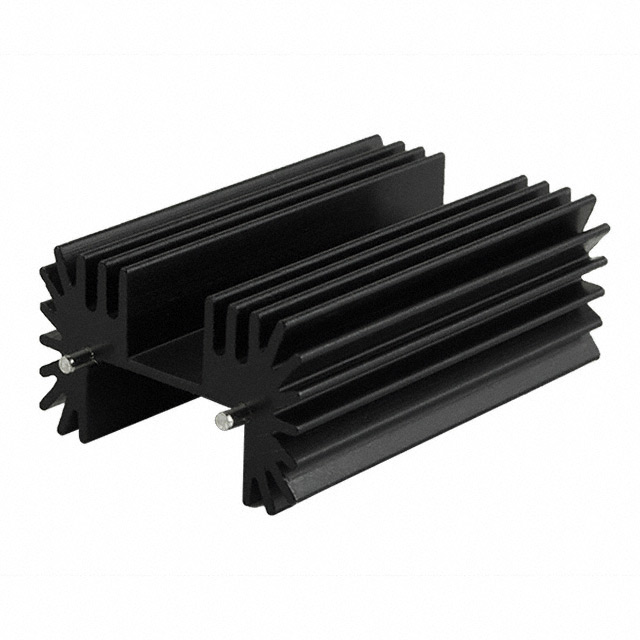

HSE-B18254-0396H
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HSE-B18254-0396H with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HSE-B18254-0396H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HSE-B18254-0396H |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | HEAT SINK, EXTRUSION,TO-218, 25. |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.462 | $0.439 | $0.428 | $0.416 | $0.393 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.37 | $0.347 | $0.324 | $0.312 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HSE-B18254-0396H | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | HEAT SINK, EXTRUSION,TO-218, 25. | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73199 pcs | Data sheet | HSE-18x Series Datasheet |
| Category | Fans, Thermal Management | Width | 1.654" (42.00mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 9.15°C/W |
| Thermal Resistance @ Forced Air Flow | 2.29°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | HSE | Power Dissipation @ Temperature Rise | 8.2W @ 75°C |
| Package Cooled | TO-218 | Other Names | 102-4231 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum Alloy | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 1.000" (25.40mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.984" (25.00mm) | Diameter | - |
| Detailed Description | Heat Sink TO-218 Aluminum Alloy 8.2W @ 75°C Board Level, Vertical | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Attachment Method | PC Pin |
