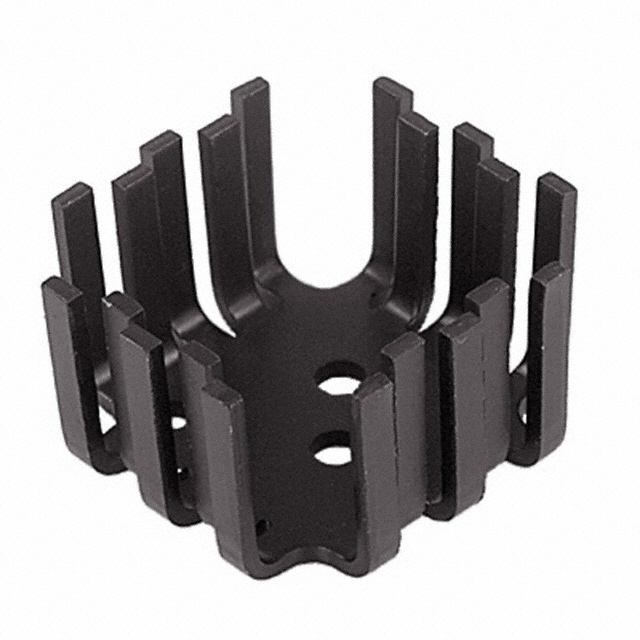

UP-T03-CB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UP-T03-CB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy UP-T03-CB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | UP-T03-CB |
|---|---|
| Manufacturer | CTS Electronic Components |
| Description | HEATSINK PWR MED-HI BLACK TO-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.056 | $1.03 | $1.002 | $0.946 | $0.891 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.835 | $0.807 | $0.724 | $0.71 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | UP-T03-CB | Manufacturer | CTS Electronic Components |
|---|---|---|---|
| Description | HEATSINK PWR MED-HI BLACK TO-3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54964 pcs | Data sheet | UP2 Series -TO3-CB Heat SinkUP-T03-xx |
| Category | Fans, Thermal Management | Width | 1.780" (45.21mm) |
| Type | Board Level | Thermal Resistance @ Natural | 9.00°C/W |
| Thermal Resistance @ Forced Air Flow | - | Shape | Square, Pin Fins |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | TO-3 | Other Names | 294-1124 UP-TO3-CB UPT03CB UPTO3CB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 1.780" (45.21mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 1.000" (25.40mm) | Diameter | - |
| Detailed Description | Heat Sink TO-3 Aluminum Board Level | Attachment Method | Bolt On |
