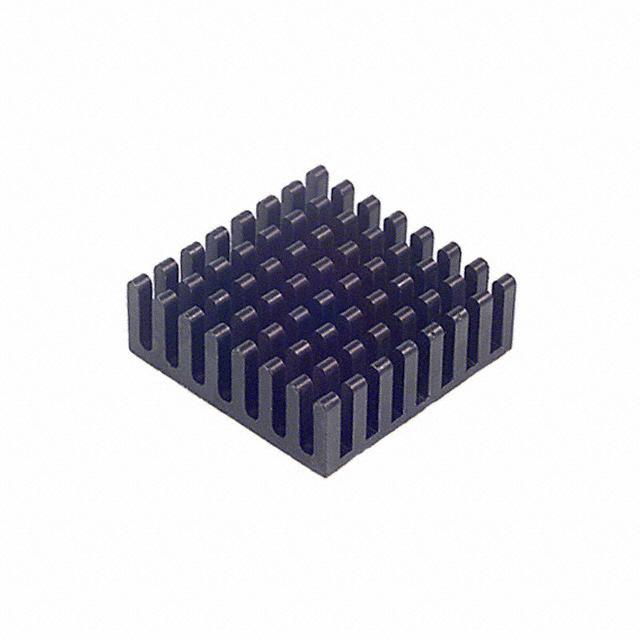

BDN09-3CB/A01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BDN09-3CB/A01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BDN09-3CB/A01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BDN09-3CB/A01 |
|---|---|
| Manufacturer | CTS Electronic Components |
| Description | HEATSINK CPU W/ADHESIVE .91"SQ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.909 | $0.885 | $0.861 | $0.813 | $0.765 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.718 | $0.694 | $0.622 | $0.61 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | BDN09-3CB/A01 | Manufacturer | CTS Electronic Components |
|---|---|---|---|
| Description | HEATSINK CPU W/ADHESIVE .91"SQ | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58485 pcs | Data sheet | A01 Laminating AdhesiveBDN Series, Adhesive Heat SinkBDN Series, Peel-Stick Heat Dissipators |
| Category | Fans, Thermal Management | Width | 0.910" (23.11mm) |
| Type | Top Mount | Thermal Resistance @ Natural | 26.90°C/W |
| Thermal Resistance @ Forced Air Flow | 9.60°C/W @ 400 LFM | Shape | Square, Pin Fins |
| Series | BDN | Power Dissipation @ Temperature Rise | - |
| Package Cooled | Assorted (BGA, LGA, CPU, ASIC...) | Other Names | 294-1097 BDN093CB/A01 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 13 Weeks |
| Length | 0.910" (23.11mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.355" (9.02mm) | Diameter | - |
| Detailed Description | Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount | Attachment Method | Thermal Tape, Adhesive (Included) |
