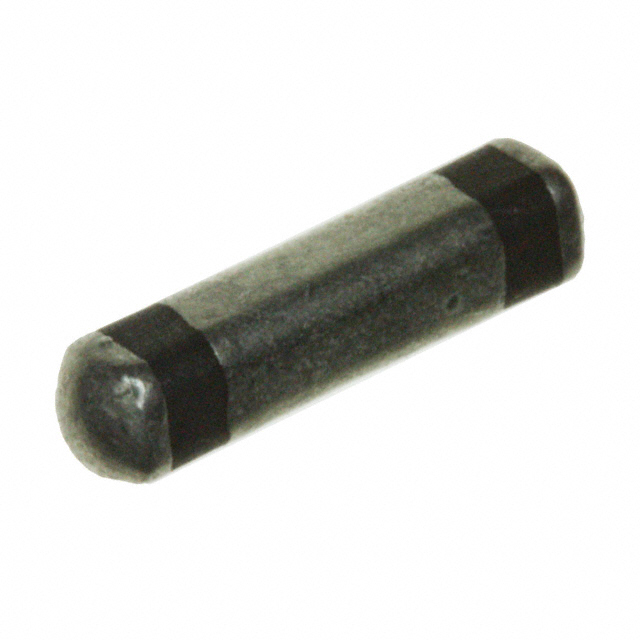

4701-001MLF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4701-001MLF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4701-001MLF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4701-001MLF |
|---|---|
| Manufacturer | CTS Electronic Components |
| Description | FILTER LC(PI) 0.1UH/8200PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.515 | $0.496 | $0.364 | $0.356 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.347 | $0.314 | $0.306 | $0.265 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4701-001MLF | Manufacturer | CTS Electronic Components |
|---|---|---|---|
| Description | FILTER LC(PI) 0.1UH/8200PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70794 pcs | Data sheet | 4701-001 |
| Category | Filters | Voltage - Rated | 100V |
| Values | L = 0.1µH, C = 8200pF | Type | Low Pass |
| Technology | LC (Pi) | Size / Dimension | 0.394" L x 0.090" W (10.00mm x 2.29mm) |
| Series | 4700 | Resistance - Channel (Ohms) | - |
| Packaging | Original-Reel® | Package / Case | Pill, Square |
| Other Names | 410-1199-6 | Operating Temperature | -55°C ~ 125°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.095" (2.41mm) |
| Filter Order | 3rd | ESD Protection | No |
| Detailed Description | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 0.1µH, C = 8200pF 10A Pill, Square | Current | 10A |
| Center / Cutoff Frequency | - | Attenuation Value | 65dB @ 100MHz |
| Applications | General Purpose |
