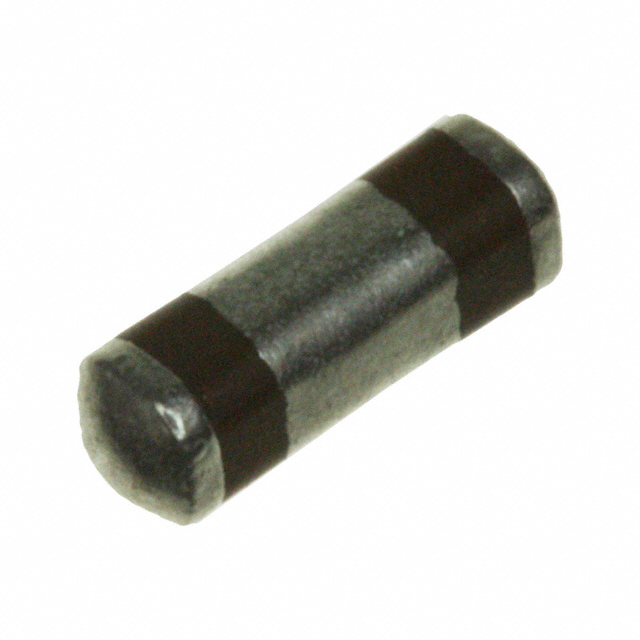

4700-009MLF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4700-009MLF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4700-009MLF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4700-009MLF |
|---|---|
| Manufacturer | CTS Electronic Components |
| Description | FILTER LC(PI) 0.1UH/470PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.267 | $0.25 | $0.239 | $0.229 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4700-009MLF | Manufacturer | CTS Electronic Components |
|---|---|---|---|
| Description | FILTER LC(PI) 0.1UH/470PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84446 pcs | Data sheet | 4700-009 |
| Category | Filters | Voltage - Rated | 100V |
| Values | L = 0.1µH, C = 470pF | Type | Low Pass |
| Technology | LC (Pi) | Size / Dimension | 0.315" L x 0.090" W (8.00mm x 2.29mm) |
| Series | 4700 | Resistance - Channel (Ohms) | - |
| Packaging | Tape & Reel (TR) | Package / Case | Pill, Square |
| Other Names | 410-1197-2 4700-009LF 4700009MLF |
Operating Temperature | -55°C ~ 125°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.095" (2.41mm) |
| Filter Order | 3rd | ESD Protection | No |
| Detailed Description | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 0.1µH, C = 470pF 10A Pill, Square | Current | 10A |
| Center / Cutoff Frequency | - | Attenuation Value | 16dB @ 100MHz |
| Applications | General Purpose |
