4206-001LF

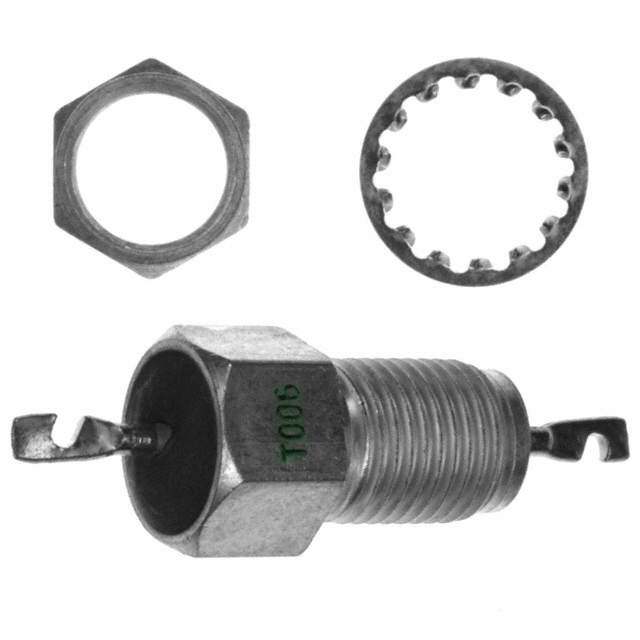

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4206-001LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4206-001LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4206-001LF |
|---|---|
| Manufacturer | CTS Electronic Components |
| Description | FILTER LC(PI) 3000PF CHASSIS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.667 | $3.974 | $3.084 | $2.937 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.765 | $2.505 | $2.419 | $2.333 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4206-001LF | Manufacturer | CTS Electronic Components |
|---|---|---|---|
| Description | FILTER LC(PI) 3000PF CHASSIS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15027 pcs | Data sheet | 4206-001(LF) Datasheet |
| Category | Filters | Voltage - Rated | 500V |
| Values | C = 3000pF | Type | Low Pass |
| Technology | LC (Pi) | Size / Dimension | 0.375" Dia x 0.687" L (9.52mm x 17.44mm) |
| Series | 4200 | Resistance - Channel (Ohms) | - |
| Packaging | Bulk | Package / Case | Axial, Bushing - 2 Notched Leads |
| Other Names | 410-1085 4206001LF |
Operating Temperature | -55°C ~ 125°C |
| Number of Channels | 1 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | - |
| Filter Order | 3rd | ESD Protection | No |
| Detailed Description | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 3000pF 25A Axial, Bushing - 2 Notched Leads | Current | 25A |
| Center / Cutoff Frequency | - | Attenuation Value | 55dB @ 100MHz |
| Applications | Data Lines for Mobile Devices |
