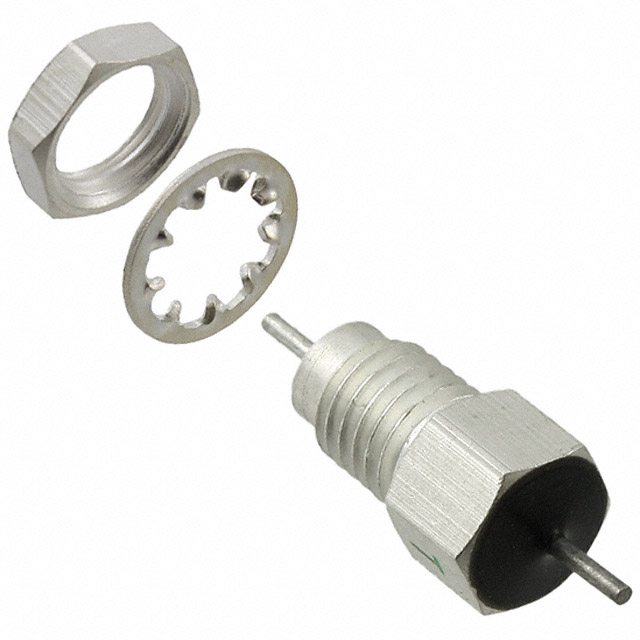

4202-004
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4202-004 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4202-004 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4202-004 |
|---|---|
| Manufacturer | CTS Electronic Components |
| Description | FILTER LC(PI) 2500PF CHASSIS |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.206 | $5.763 | $4.876 | $4.729 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.433 | $3.99 | $3.842 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4202-004 | Manufacturer | CTS Electronic Components |
|---|---|---|---|
| Description | FILTER LC(PI) 2500PF CHASSIS | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 8732 pcs | Data sheet | EMI/RFI Filtering Catalog 4000R7 Sec 14000R7 Filters Catalog Sec 24202-004 |
| Category | Filters | Voltage - Rated | 350V |
| Values | C = 2500pF | Type | Low Pass |
| Technology | LC (Pi) | Size / Dimension | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) |
| Series | 4200 | Resistance - Channel (Ohms) | - |
| Packaging | Bulk | Package / Case | Axial, Bushing |
| Other Names | 410-1301 4202-004-ND 4202004 |
Operating Temperature | -55°C ~ 125°C |
| Number of Channels | 1 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Height | - |
| Filter Order | 3rd | ESD Protection | No |
| Detailed Description | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 2500pF 15A Axial, Bushing | Current | 15A |
| Center / Cutoff Frequency | - | Attenuation Value | 50dB @ 100MHz |
| Applications | Data Lines for Mobile Devices |
