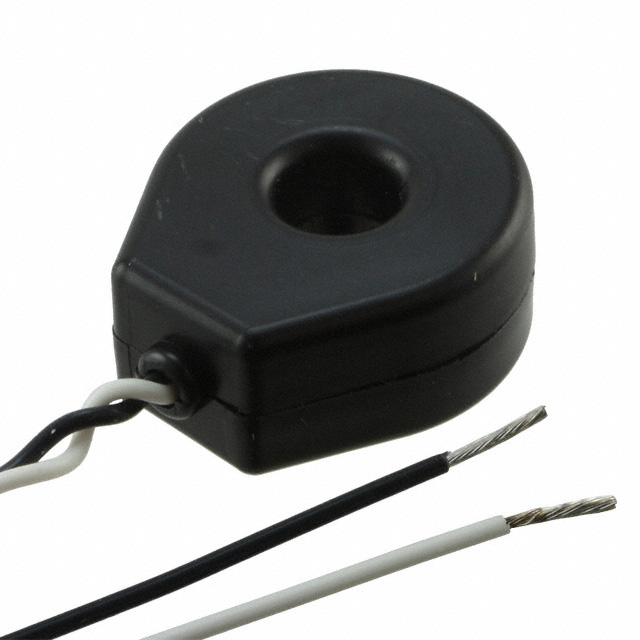

MODEL 19
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MODEL 19 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MODEL 19 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MODEL 19 |
|---|---|
| Manufacturer | CR Magnetics, Inc. |
| Description | CURR SENSE XFMR IN-LINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.307 | $3.18 | $2.935 | $2.838 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.759 | $2.72 | $2.691 | $2.642 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MODEL 19 | Manufacturer | CR Magnetics, Inc. |
|---|---|---|---|
| Description | CURR SENSE XFMR IN-LINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12071 pcs | Data sheet | PH Series |
| Category | Transformers | Weight | - |
| Type | Non-Invasive (Solid Core) | Turns Ratio - Primary:Secondary | - |
| Termination Style | Wire Leads | Size / Dimension | 1.039" L x 0.949" W (26.40mm x 24.10mm) |
| Series | PH | Ratings | - |
| Packaging | Bulk | Other Names | 582-1037 MODEL19 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.461" (11.70mm) | Frequency Range | 50Hz ~ 1kHz |
| Energy Time (E.T.) | - | Detailed Description | Current Sense Transformer 50Hz ~ 1kHz Free Hanging (In-Line) |
| DC Resistance (DCR) | - | Current Ratio | - |
