3220-40-0300-00

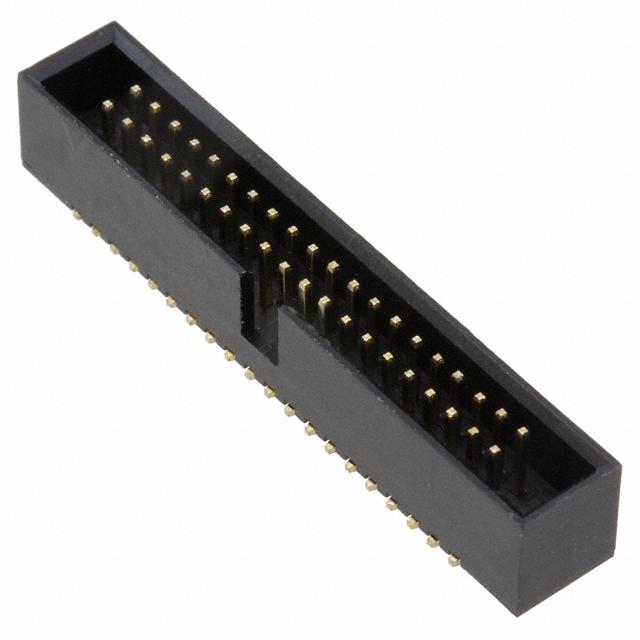

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3220-40-0300-00 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3220-40-0300-00 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3220-40-0300-00 |
|---|---|
| Manufacturer | CNC Tech |
| Description | IDC BOX HEADER 0.050 40 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.801 | $0.727 | $0.623 | |||
| 500 pcs | 1260 pcs | 5040 pcs | |||
| $0.519 | $0.445 | $0.395 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3220-40-0300-00 | Manufacturer | CNC Tech |
|---|---|---|---|
| Description | IDC BOX HEADER 0.050 40 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87084 pcs | Data sheet | IDC Header Mating GuideIDC Header Ordering Guide3220-xx-0300-00 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 1175-1644 3220-40-0300-00-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.213" (5.40mm) | Insulation Color | - |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 40 position 0.050" (1.27mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
