3220-24-0300-00

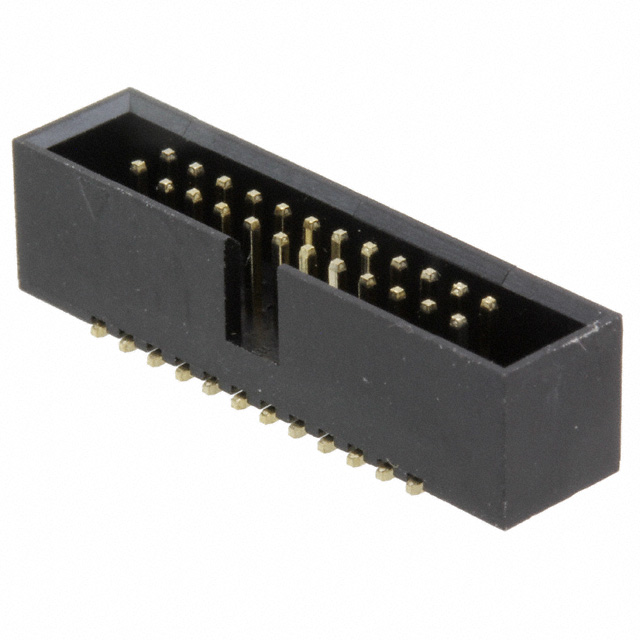

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3220-24-0300-00 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3220-24-0300-00 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3220-24-0300-00 |
|---|---|
| Manufacturer | CNC Tech |
| Description | IDC BOX HEADER 0.050 24 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.44 | $0.386 | $0.333 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3220-24-0300-00 | Manufacturer | CNC Tech |
|---|---|---|---|
| Description | IDC BOX HEADER 0.050 24 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68131 pcs | Data sheet | IDC Header Mating GuideIDC Header Ordering Guide3220-xx-0300-00 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 1175-1672 3220-24-0300-00-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.213" (5.40mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 24 position 0.050" (1.27mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
