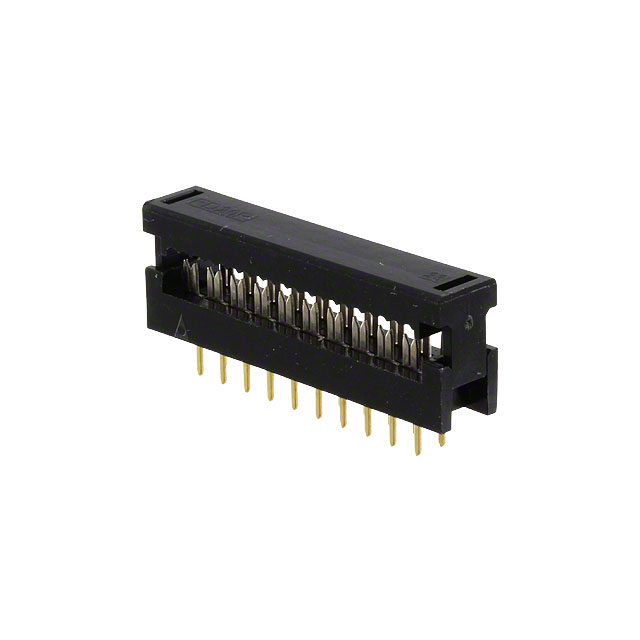

3040-20-00
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3040-20-00 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3040-20-00 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3040-20-00 |
|---|---|
| Manufacturer | CNC Tech |
| Description | CONN DIP HDR IDC 20POS PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.191 | $0.18 | $0.162 | $0.144 | $0.138 | |
| 250 pcs | 500 pcs | 1440 pcs | 2880 pcs | ||
| $0.126 | $0.12 | $0.099 | $0.09 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3040-20-00 | Manufacturer | CNC Tech |
|---|---|---|---|
| Description | CONN DIP HDR IDC 20POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 259879 pcs | Data sheet | 3040-xx-00 DrawingIDC, Flat Ribbon Cable Mating Chart |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Series | - | Row Spacing | 0.100" (2.54mm) |
| Packaging | Tray | Other Names | 1175-1661 3040-20-00-ND |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Feed Through |
| Detailed Description | 20 Position Ribbon Cable, DIP Header Connector IDC Through Hole | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector Type | Ribbon Cable, DIP Header |
| Color | - | Cable Termination | IDC |
| Cable Pitch | 0.050" (1.27mm) | Board-Side Pitch | 0.100" (2.54mm) |
