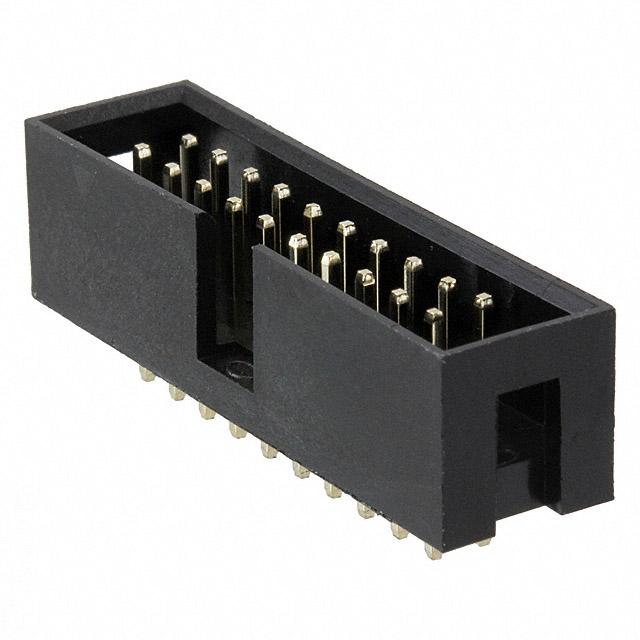

3020-20-0100-00
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3020-20-0100-00 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3020-20-0100-00 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3020-20-0100-00 |
|---|---|
| Manufacturer | CNC Tech |
| Description | IDC BOX HEADER .100" 20POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 960 pcs | |
|---|---|---|---|---|---|
| $0.263 | $0.23 | $0.198 | $0.158 | ||
| 1920 pcs | 5760 pcs | 10560 pcs | |||
| $0.135 | $0.126 | $0.12 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3020-20-0100-00 | Manufacturer | CNC Tech |
|---|---|---|---|
| Description | IDC BOX HEADER .100" 20POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 190723 pcs | Data sheet | IDC Header Mating GuideIDC Header Ordering Guide3020-xx-0100-00 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 1175-1612 3020-20-0100-00-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.354" (9.00mm) | Insulation Color | - |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 20 position 0.100" (2.54mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
