3010-16-001-11-00

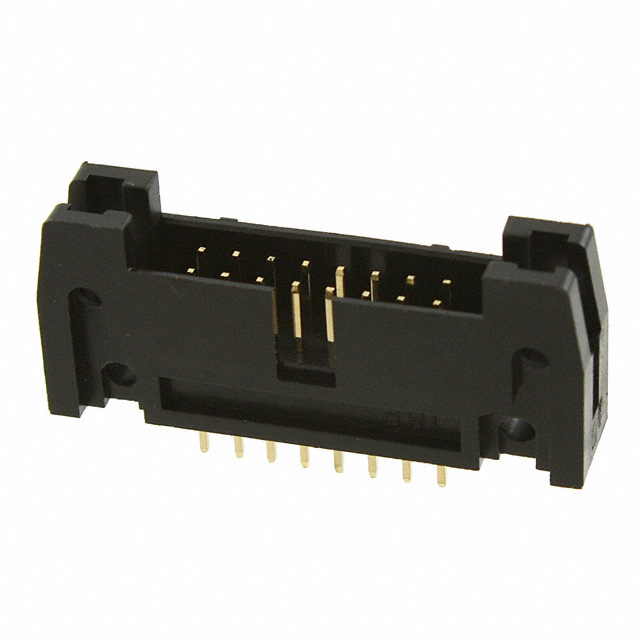

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3010-16-001-11-00 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3010-16-001-11-00 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3010-16-001-11-00 |
|---|---|
| Manufacturer | CNC Tech |
| Description | IDC HEADER .100" 16POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2880 pcs | ||||
|---|---|---|---|---|---|
| $0.155 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3010-16-001-11-00 | Manufacturer | CNC Tech |
|---|---|---|---|
| Description | IDC HEADER .100" 16POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 123184 pcs | Data sheet | 3010-xx-001-11-00 DrawingIDC Header Ordering GuideIDC Header Mating Guide |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Brass |
| Type Attributes | - | Termination | Solder |
| Style | Board to Cable/Wire | Stacking Direction | Male Pin |
| Shrouding | 0.100" (2.54mm) | Shield Termination | Square |
| Series | - | Row Spacing - Mating | Shrouded - 4 Wall |
| RoHS Status | Tray | Ripple Current - Low Frequency | - |
| Pitch - Connector | - | Overall Contact Length | 0.134" (3.40mm) |
| Other Names | 1175-1462 3010-16-001-11-00-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 16 |
| Number of Contacts | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Standard Lead Time | 14 Weeks |
| Manufacturer Part Number | 3010-16-001-11-00 | Length - Post (Mating) | - |
| Insulation Material | - | Insulation Height | - |
| Features | Keying Slot | Expanded Description | 16 Positions Header Connector 0.100" (2.54mm) Through Hole Gold |
| Description | IDC HEADER .100" 16POS | Current Rating | 1A |
| Current - Max/Contact | - | Contact Length - Post | - |
| Contact Length - Mating | 0.100" (2.54mm) | Contact Finish Thickness - Post | Polybutylene Terephthalate (PBT) |
| Contact Finish Thickness - Mating | Gold | Contact Finish - Post | Flash |
| Contact Finish - Mating | - | Connector Type | Header |
| Actual Diameter | - |
