1003-002-01100

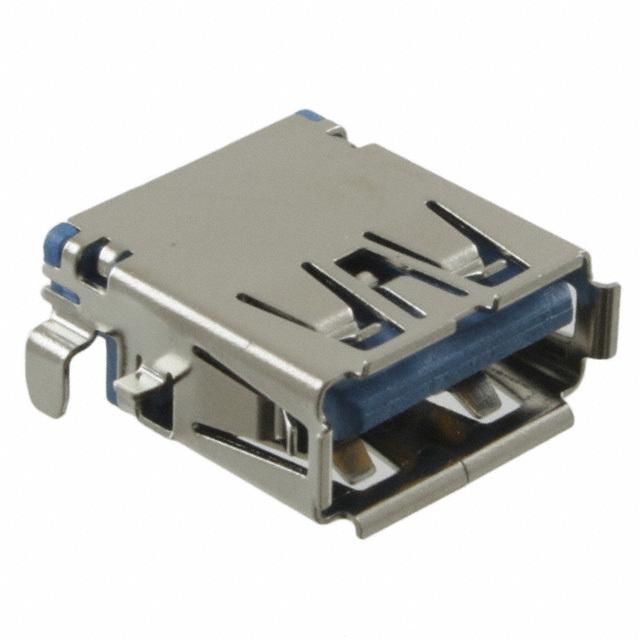

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1003-002-01100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1003-002-01100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1003-002-01100 |
|---|---|
| Manufacturer | CNC Tech |
| Description | CONN USB 3.0 A FMALE SMT R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.829 | $0.75 | $0.704 | $0.674 | $0.643 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.582 | $0.536 | $0.459 | $0.429 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1003-002-01100 | Manufacturer | CNC Tech |
|---|---|---|---|
| Description | CONN USB 3.0 A FMALE SMT R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86396 pcs | Data sheet | 1003-002-01100 Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Termination | Solder | Specifications | USB 3.0 (USB 3.1 Gen 1, Superspeed) |
| Shielding | - | Shell/Shielding Material | Brass |
| Series | - | Packaging | Tray |
| Other Names | 1175-1267 | Operating Temperature | -40°C ~ 85°C |
| Number of Ports | 1 | Number of Contacts | 9 |
| Mounting Type | Surface Mount, Right Angle | Mounting Feature | Horizontal |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 5000 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Ingress Protection | - | Gender | Receptacle |
| Features | Board Lock, Solder Retention | Detailed Description | USB - A USB 3.0 (USB 3.1 Gen 1, Superspeed) Receptacle Connector 9 Position Surface Mount, Right Angle |
| Current Rating | 1.5A | Contact Finish | Gold |
| Connector Type | USB - A |
