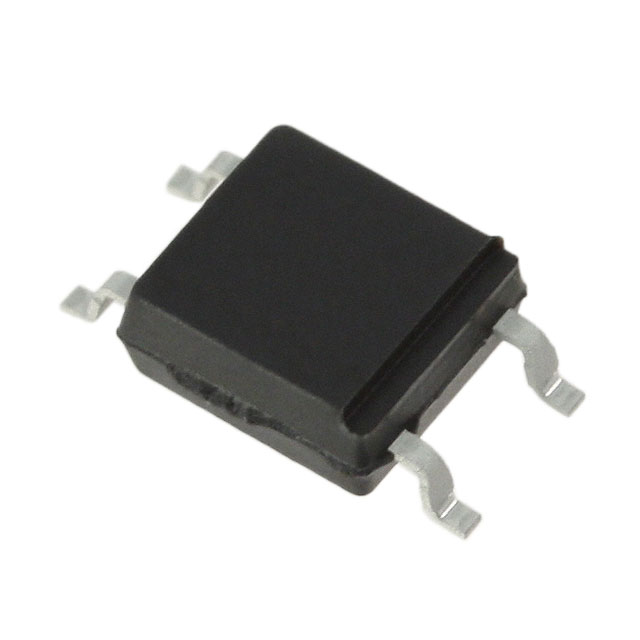

PS2761B-1-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PS2761B-1-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PS2761B-1-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PS2761B-1-A |
|---|---|
| Manufacturer | CEL (California Eastern Laboratories) |
| Description | OPTOISOLATOR 3.75KV TRANS 4SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 300 pcs |
|---|---|---|---|---|---|
| $0.476 | $0.387 | $0.298 | $0.268 | $0.238 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.202 | $0.167 | $0.158 | $0.155 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PS2761B-1-A | Manufacturer | CEL (California Eastern Laboratories) |
|---|---|---|---|
| Description | OPTOISOLATOR 3.75KV TRANS 4SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 135532 pcs | Data sheet | PS2761B-1 SeriesOptocoupler Design GuideOptocouplers with Options GuideOptocouplers + SSR Brochure |
| Category | Isolators | Voltage - Output (Max) | 70V |
| Voltage - Isolation | 3750Vrms | Voltage - Forward (Vf) (Typ) | 1.1V |
| Vce Saturation (Max) | 300mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-SOP | Series | NEPOC |
| Rise / Fall Time (Typ) | 4µs, 5µs | Packaging | Tube |
| Package / Case | 4-SMD, Gull Wing | Output Type | Transistor |
| Other Names | PS2761B1A | Operating Temperature | -55°C ~ 110°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP | Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 400% @ 5mA | Current - Output / Channel | 40mA |
| Current - DC Forward (If) (Max) | 25mA |
