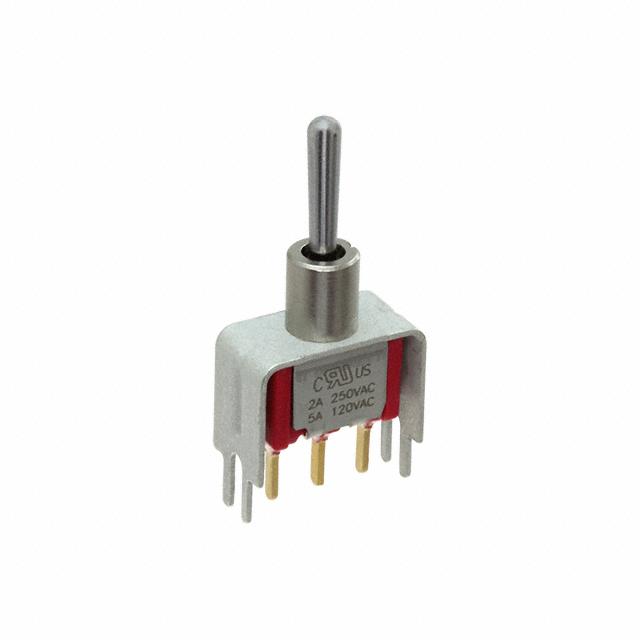

U15SD9V3GE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy U15SD9V3GE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy U15SD9V3GE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | U15SD9V3GE |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH TOGGLE SPDT 5A 120V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.994 | $2.914 | $2.836 | $2.678 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.599 | $2.521 | $2.127 | $2.048 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | U15SD9V3GE | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH TOGGLE SPDT 5A 120V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19077 pcs | Data sheet | 7000 Series Mini Toggle Datasheet |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 120V | Termination Style | PC Pin |
| Switch Function | Mom-Off-Mom | Series | 7000 |
| Panel Cutout Dimensions | - | Packaging | Bulk |
| Other Names | CKN11948 U15SD9V3GE-ND |
Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Epoxy Sealed Terminals | Electrical Life | 40,000 Cycles |
| Detailed Description | Toggle Switch SPDT Through Hole | Current Rating | 5A (AC/DC) |
| Circuit | SPDT | Bushing Thread | Unthreaded |
| Actuator Type | Standard Round | Actuator Material | Brass, Chrome Plated |
| Actuator Length | 12.45mm |
