Home > Products > Switches > Snap Action, Limit Switches > TMCJG6VT2810C

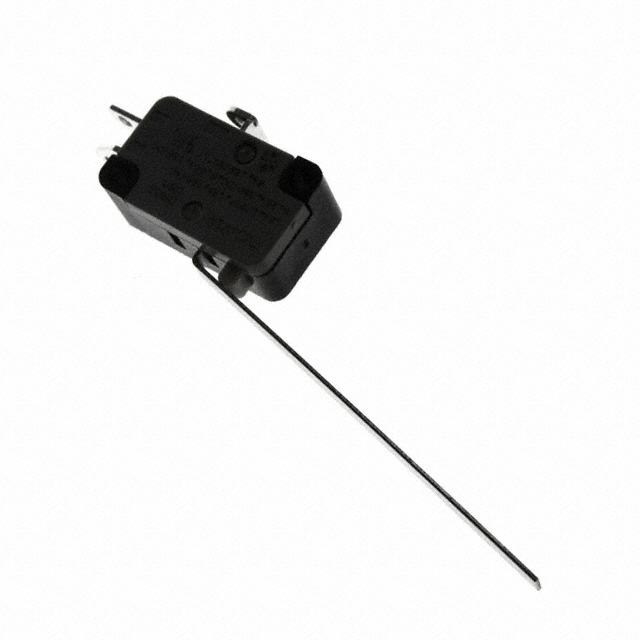

TMCJG6VT2810C

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMCJG6VT2810C with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TMCJG6VT2810C
Manufacturer	C&K
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 10258 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$3.354

Product parameter
Data sheet

Product parameter

Part Number	TMCJG6VT2810C	Manufacturer	C&K
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10258 pcs	Data sheet	TM Series Snap Acting Datasheet
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-Mom	Series	TM
Release Force	4.000gf	Pretravel	0.750" (19.05mm)
Packaging	Bulk	Overtravel	0.278" (7.1mm)
Other Names	*TMCJG6VT2810C CKN9920	Operating Temperature	-55°C ~ 150°C
Operating Position	0.600" (15.2mm)	Operating Force	18gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	150,000 Cycles
Differential Travel	0.190" (4.8mm)	Current Rating	15A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Lever, Straight
