Home > Products > Switches > Snap Action, Limit Switches > TMCGD6ST2040C

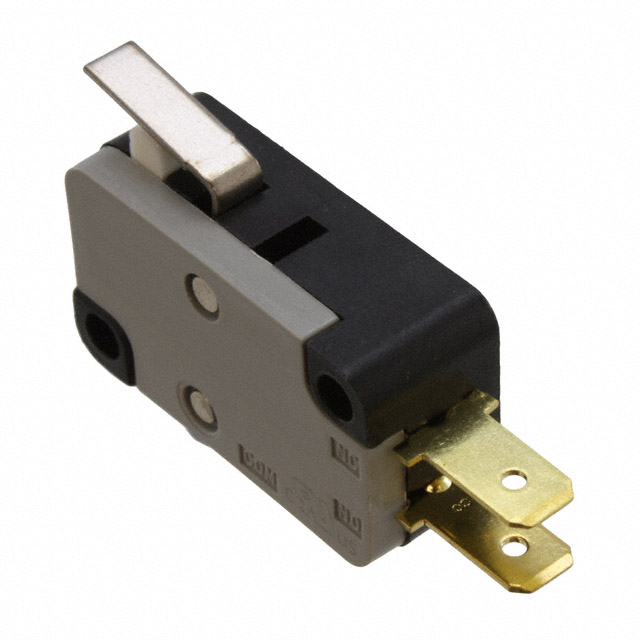

TMCGD6ST2040C

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMCGD6ST2040C with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TMCGD6ST2040C
Manufacturer	C&K
Description	SWITCH SNAP ACTION SPDT 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 22836 pcs
Reference Price (In US Dollars)	50 pcs
Reference Price (In US Dollars)	$1.571

Product parameter
Data sheet

Product parameter

Part Number	TMCGD6ST2040C	Manufacturer	C&K
Description	SWITCH SNAP ACTION SPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22836 pcs	Data sheet	TM Series Snap Acting Datasheet
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.187" (4.7mm)
Switch Function	On-Mom	Series	TM
Release Force	9.000gf	Pretravel	0.161" (4.1mm)
Packaging	Bulk	Overtravel	0.065" (1.7mm)
Other Names	Q6548102	Operating Temperature	-55°C ~ 150°C
Operating Position	0.600" (15.2mm)	Operating Force	45gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	350,000 Cycles
Differential Travel	0.030" (0.76mm)	Current Rating	10A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Lever, Straight
