Home > Products > Switches > Snap Action, Limit Switches > TMCGD6SA2540C

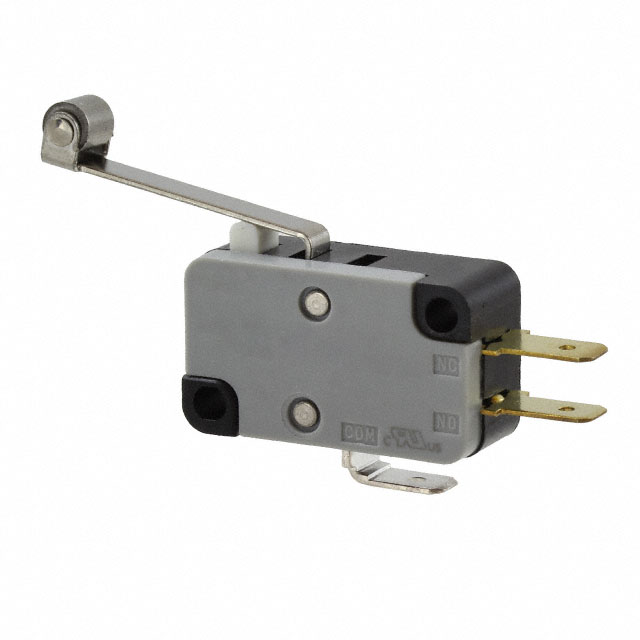

TMCGD6SA2540C

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMCGD6SA2540C with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TMCGD6SA2540C
Manufacturer	C&K
Description	SWITCH SNAP ACTION SPDT 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 22781 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.827	$2.262	$2.149	$2.092
	$1.809	$1.696	$1.612	$1.555

Product parameter
Data sheet

Product parameter

Part Number	TMCGD6SA2540C	Manufacturer	C&K
Description	SWITCH SNAP ACTION SPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22781 pcs	Data sheet	TM Series Snap Acting Datasheet
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.187" (4.7mm)
Switch Function	On-Mom	Series	TM
Release Force	5.000gf	Pretravel	0.312" (7.9mm)
Packaging	Bulk	Overtravel	0.125" (3.2mm)
Other Names	*TMCGD6SA2540C CKN11242 TMCGD6SA2540C-ND	Operating Temperature	-55°C ~ 150°C
Operating Position	0.812" (20.6mm)	Operating Force	30gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	350,000 Cycles
Differential Travel	0.070" (1.8mm)	Current Rating	10A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Lever, Roller
