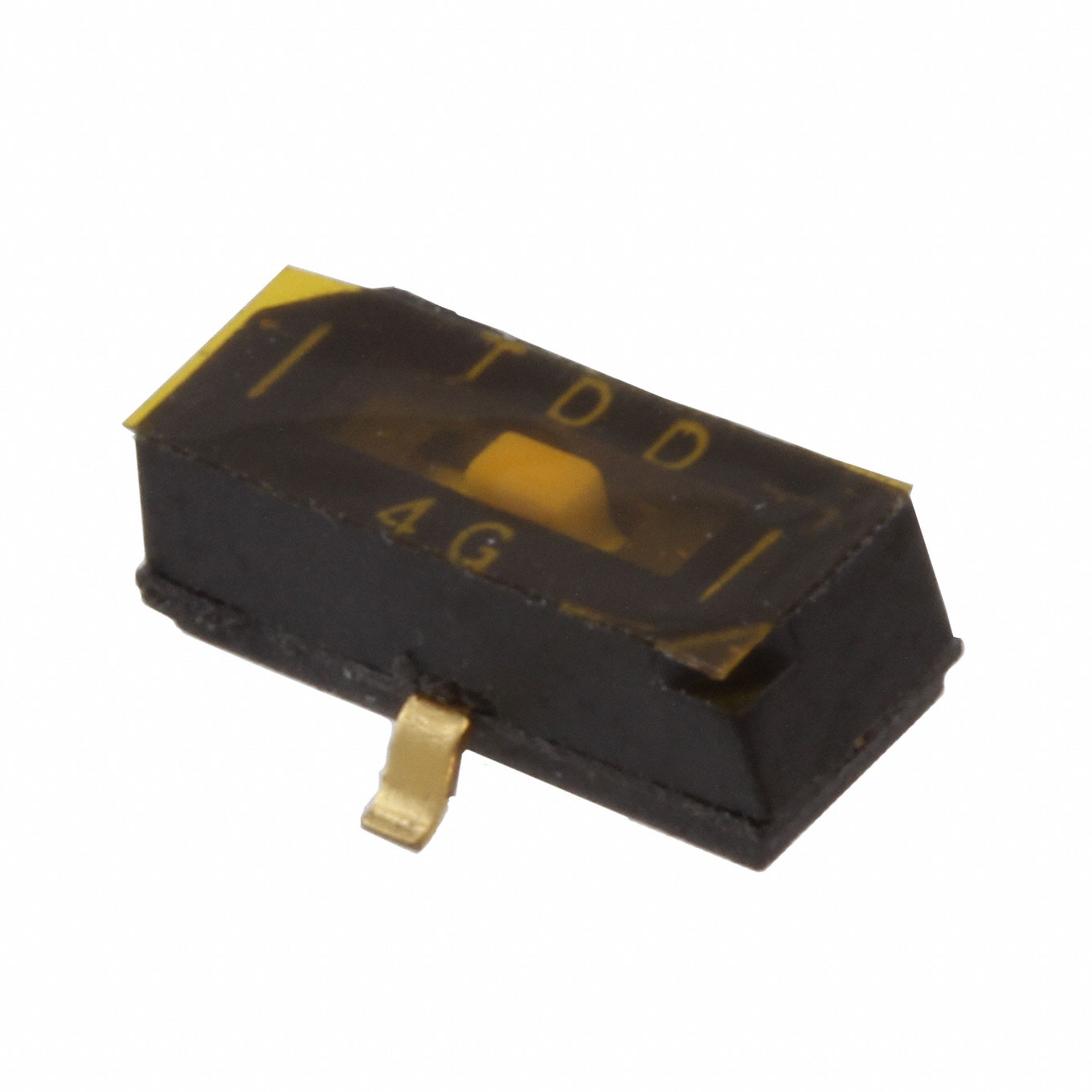

TDD01H0SB1R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TDD01H0SB1R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TDD01H0SB1R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TDD01H0SB1R |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH SLIDE DIP SPDT 25MA 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 5000 pcs | |||
|---|---|---|---|---|---|
| $0.423 | $0.37 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TDD01H0SB1R | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPDT 25MA 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 89491 pcs | Data sheet | TDD Series Dip Datasheet |
| Category | Switches | Washable | Yes |
| Voltage Rating | 24VDC | Termination Style | Gull Wing |
| Series | TDD | Pitch | - |
| Packaging | Tape & Reel (TR) | Other Names | CKN10546TR |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 200 Cycles | Manufacturer Standard Lead Time | 14 Weeks |
| Length | 0.236" (6.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.091" (2.30mm) | Features | Tape Seal |
| Electrical Life | 200 Cycles | Detailed Description | Dip Switch SPDT 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC |
| Current Rating | 25mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | SPDT |
| Body Material | Polyphenylene Sulfide (PPS) | Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
