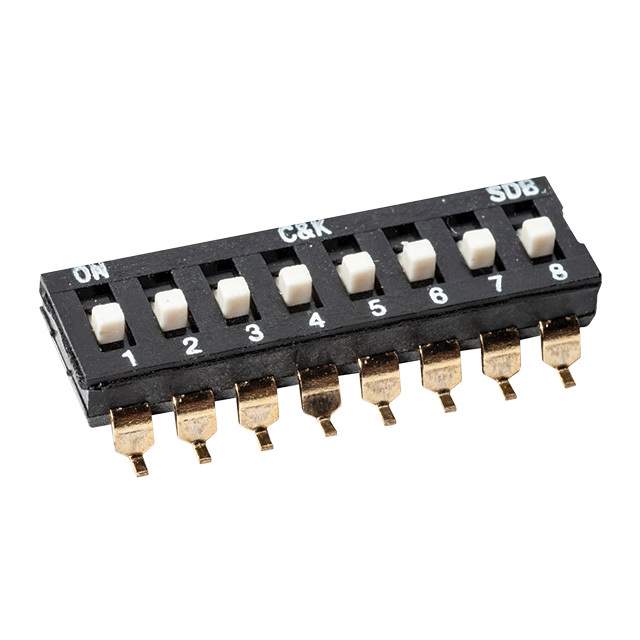

SDB08H1SBD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SDB08H1SBD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SDB08H1SBD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SDB08H1SBD |
|---|---|
| Manufacturer | C&K |
| Description | DIP 8P EXTENDED ACT. GOLD CONTAC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 22 pcs | 44 pcs | 66 pcs | 110 pcs |
|---|---|---|---|---|---|
| $0.666 | $0.629 | $0.603 | $0.565 | $0.552 | |
| 264 pcs | 506 pcs | 1012 pcs | 5016 pcs | ||
| $0.488 | $0.462 | $0.411 | $0.359 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SDB08H1SBD | Manufacturer | C&K |
|---|---|---|---|
| Description | DIP 8P EXTENDED ACT. GOLD CONTAC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 99216 pcs | Data sheet | SDB Series Datasheet |
| Category | Switches | Washable | No |
| Voltage Rating | 24VDC | Termination Style | Gull Wing |
| Series | SDB | Pitch | 0.100" (2.54mm), Full |
| Packaging | Bulk | Other Names | CKN12005 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 8 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000 Cycles | Manufacturer Standard Lead Time | 8 Weeks |
| Length | 0.843" (21.41mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.189" (4.80mm) | Features | - |
| Electrical Life | 1,000 Cycles | Detailed Description | Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC |
| Current Rating | 25mA | Contact Material | Phosphor Bronze |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polyamide (PA46), Nylon 4/6 | Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
