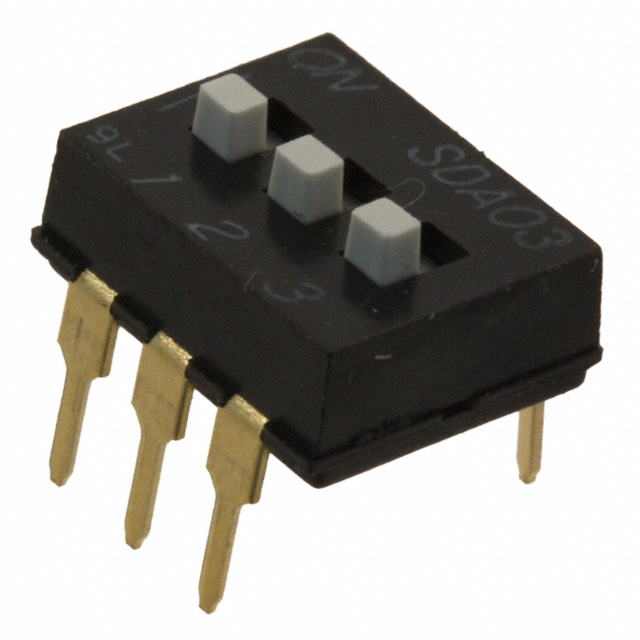

SDA03H1BD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SDA03H1BD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SDA03H1BD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SDA03H1BD |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH SLIDE DIP SPST 25MA 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 45 pcs | 90 pcs | 135 pcs |
|---|---|---|---|---|---|
| $0.405 | $0.396 | $0.373 | $0.35 | $0.335 | |
| 270 pcs | 540 pcs | 1035 pcs | 5040 pcs | ||
| $0.32 | $0.289 | $0.266 | $0.217 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SDA03H1BD | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 25MA 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 104258 pcs | Data sheet | SDA Series Dip Datasheet |
| Category | Switches | Washable | No |
| Voltage Rating | 24VDC | Termination Style | PC Pin |
| Series | SDA | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tube | Other Names | *SDA03H1BD CKN6061 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000 Cycles | Manufacturer Standard Lead Time | 16 Weeks |
| Length | 0.378" (9.60mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.228" (5.80mm) | Features | - |
| Electrical Life | 1,000 Cycles | Detailed Description | Dip Switch SPST 3 Position Through Hole Slide (Standard) Actuator 25mA 24VDC |
| Current Rating | 25mA | Contact Material | Beryllium Copper |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polyphenylene Sulfide (PPS) | Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
