SD09H0B

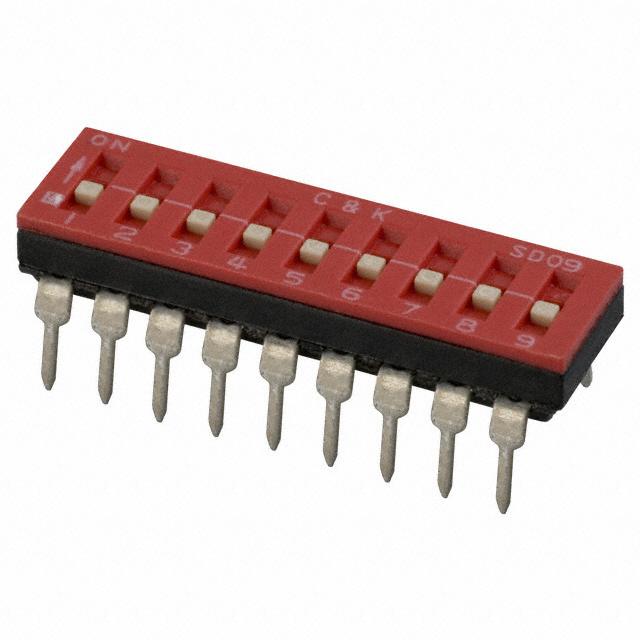

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD09H0B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SD09H0B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD09H0B |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH SLIDE DIP SPST 100MA 25V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.848 | $0.822 | $0.78 | $0.729 | $0.712 | |
| 260 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.61 | $0.593 | $0.509 | $0.466 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SD09H0B | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 25V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77038 pcs | Data sheet | SD Series Dip Datasheet |
| Category | Switches | Washable | Yes |
| Voltage Rating | 25VDC | Termination Style | PC Pin |
| Series | SD | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tube | Other Names | *SD09H0B CKN6131 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 9 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 2,000 Cycles | Manufacturer Standard Lead Time | 13 Weeks |
| Length | 0.958" (24.33mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.178" (4.52mm) | Features | Tape Seal |
| Electrical Life | 2,000 Cycles | Detailed Description | Dip Switch SPST 9 Position Through Hole Slide (Standard) Actuator 100mA 25VDC |
| Current Rating | 100mA | Contact Material | Beryllium Copper |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polyphthalamide (PPA) | Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
