Home > Products > Switches > Rotary Switches > RM103772BCB

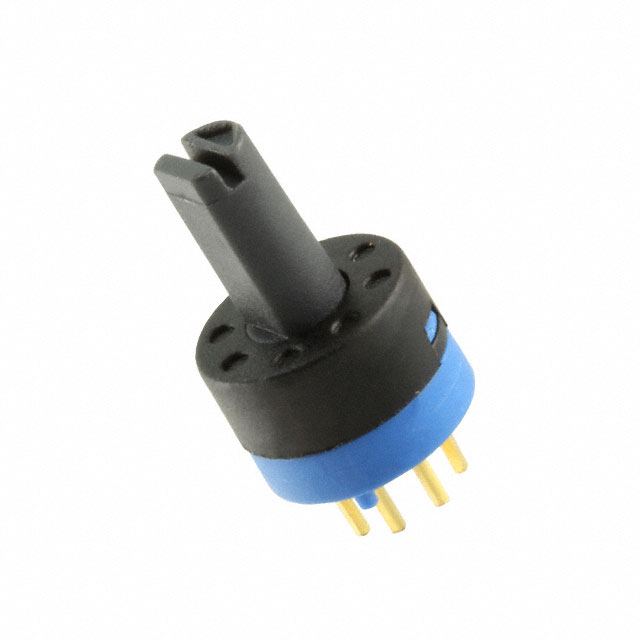

RM103772BCB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RM103772BCB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RM103772BCB
Manufacturer	C&K
Description	SWITCH ROTARY 3POS 500MA 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 64814 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.797	$0.764	$0.697	$0.664	$0.598
	$0.548	$0.531	$0.515	$0.481

Product parameter
Data sheet

Product parameter

Part Number	RM103772BCB	Manufacturer	C&K
Description	SWITCH ROTARY 3POS 500MA 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	64814 pcs	Data sheet	RM Series Datasheet
Category	Switches	Voltage Rating - DC	24V
Termination Style	PC Pin	Series	RM
Panel Cutout Dimensions	-	Other Names	*RM103772BCB CKN10697
Operating Force	2.700gfm	Number of Positions	3
Number of Poles per Deck	1	Number of Decks	1
Mounting Type	Through Hole	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Index Stops	Fixed
Features	-	Detailed Description	Rotary Switch 3 Position SP3T 500mA (DC) 24VDC Through Hole
Depth Behind Panel	7.37mm	Current Rating	500mA (DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Brass
Contact Finish	Gold	Circuit per Deck	SP3T
Angle of Throw	45°	Actuator Type	Flatted (4.2mm Dia), Slotted
Actuator Length	7.70mm
