R20307RN02Q

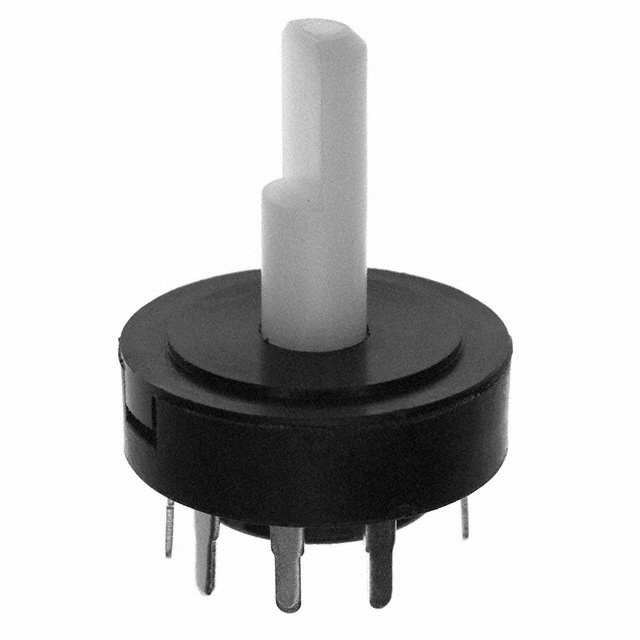

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy R20307RN02Q with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy R20307RN02Q with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | R20307RN02Q |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH ROTARY 3POS 5A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.649 | $1.578 | $1.441 | $1.372 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.235 | $1.132 | $1.098 | $1.064 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | R20307RN02Q | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH ROTARY 3POS 5A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30998 pcs | Data sheet | R Series Rotary Datasheet |
| Category | Switches | Voltage Rating - DC | 125V |
| Voltage Rating - AC | 125V | Termination Style | PC Pin |
| Series | R | Panel Cutout Dimensions | - |
| Other Names | *R20307RN02Q CKN9888 |
Operating Force | - |
| Number of Positions | 3 | Number of Poles per Deck | 2 |
| Number of Decks | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Index Stops | Fixed |
| Features | - | Detailed Description | Rotary Switch 3 Position DP3T 5A (AC), 500mA (DC) 125VAC Through Hole |
| Depth Behind Panel | 10.29mm | Current Rating | 5A (AC), 500mA (DC) |
| Contact Timing | Non-Shorting (BBM) | Contact Material | Copper |
| Contact Finish | Silver | Circuit per Deck | DP3T |
| Angle of Throw | 36° | Actuator Type | Flatted (6.35mm Dia) |
| Actuator Length | 12.70mm |
