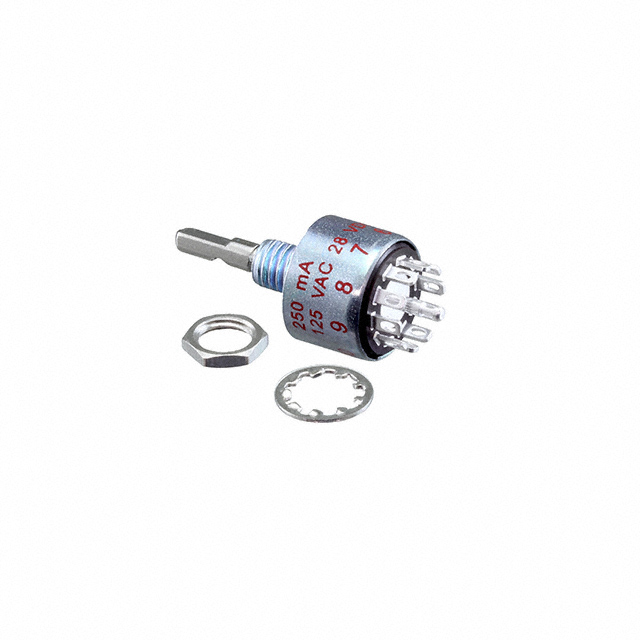

MA03L1NZQD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MA03L1NZQD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MA03L1NZQD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MA03L1NZQD |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH ROTARY 3POS 250MA 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.983 | $4.651 | $4.584 | $4.518 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $3.986 | $3.853 | $3.787 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MA03L1NZQD | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH ROTARY 3POS 250MA 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9963 pcs | Data sheet | M Series Datasheet |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Series | M | Panel Cutout Dimensions | Circular - 6.60mm Dia |
| Other Names | *MA03L1NZQD CKN11883 MA03L1NZQD-ND Q1938519 |
Operating Force | 2.880 ~ 5.041gfm |
| Number of Positions | 3 | Number of Poles per Deck | 1 |
| Number of Decks | 1 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Index Stops | Fixed |
| Features | - | Detailed Description | Rotary Switch 3 Position SP3T 250mA (AC/DC) 125VAC Panel Mount |
| Depth Behind Panel | 14.86mm | Current Rating | 250mA (AC/DC) |
| Contact Timing | Non-Shorting (BBM) | Contact Material | Copper Alloy |
| Contact Finish | Silver | Circuit per Deck | SP3T |
| Angle of Throw | 36° | Actuator Type | Flatted (3.17mm Dia) |
| Actuator Length | 10.16mm |
