Home > Products > Switches > Snap Action, Limit Switches > HDT0004

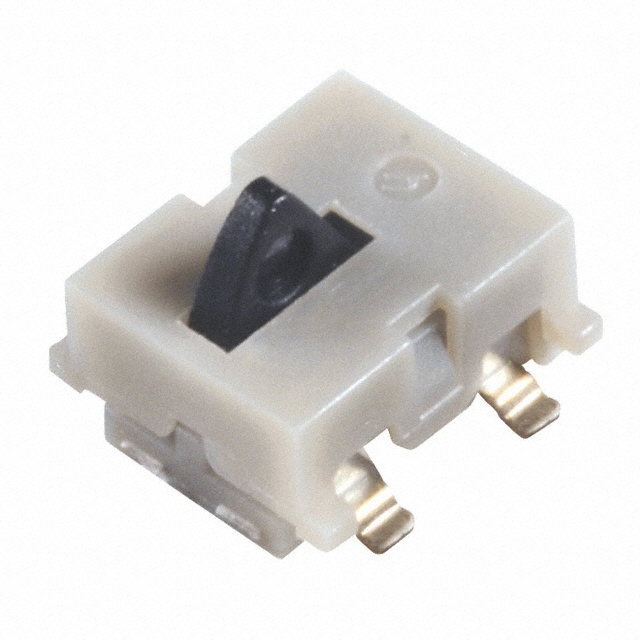

HDT0004

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDT0004 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	HDT0004
Manufacturer	C&K
Description	SWITCH DETECTOR SPST-NO 1MA 5V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 87201 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$0.473	$0.445	$0.428	$0.41
	$0.392	$0.312	$0.285	$0.276

Product parameter
Data sheet

Product parameter

Part Number	HDT0004	Manufacturer	C&K
Description	SWITCH DETECTOR SPST-NO 1MA 5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	87201 pcs	Data sheet	HDT Series Detect Datasheet
Category	Switches	Voltage Rating - DC	5V
Termination Style	SMD (SMT) Tab	Switch Function	Off-Mom
Series	HDT	Release Force	-
Pretravel	0.012" (0.3mm)	Packaging	Cut Tape (CT)
Overtravel	0.039" (1.0mm)	Other Names	*HDT0004 CKN9956CT
Operating Temperature	-40°C ~ 85°C	Operating Position	0.138" (3.5mm)
Operating Force	35gf	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	100,000 Cycles	Differential Travel	-
Current Rating	1mA (DC)	Circuit	SPST-NO
Actuator Type	Angled Toggle (Detector)
