Home > Products > Switches > Snap Action, Limit Switches > HBS2KGB4SA055C

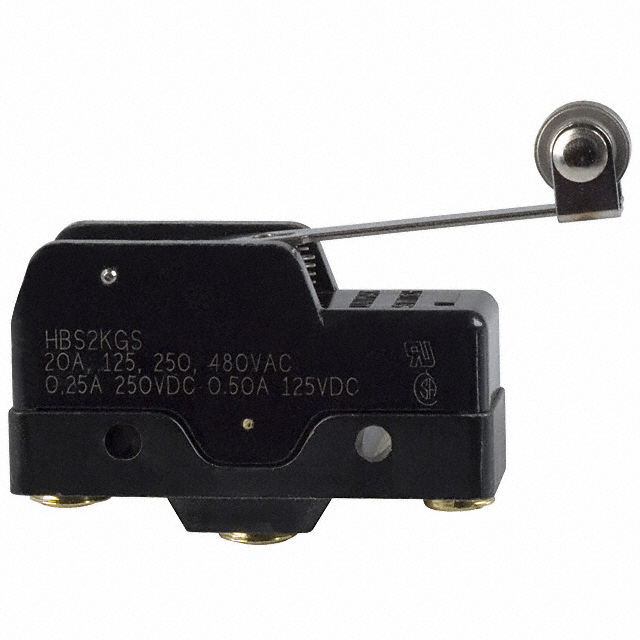

HBS2KGB4SA055C

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HBS2KGB4SA055C with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	HBS2KGB4SA055C
Manufacturer	C&K
Description	SWITCH SNAP ACTION SPDT 20A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 9231 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$6.614	$5.129	$4.859	$4.589
	$4.184	$3.914	$3.779

Product parameter
Data sheet

Product parameter

Part Number	HBS2KGB4SA055C	Manufacturer	C&K
Description	SWITCH SNAP ACTION SPDT 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9231 pcs	Data sheet	HB Series Snap-Acting Datasheet
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-Mom	Series	HB
Release Force	21gf	Pretravel	0.312" (7.9mm)
Packaging	Bulk	Overtravel	0.156" (3.96mm)
Other Names	*HBS2KGB4SA055C CKN1421 HBS2KGB4SA055C-ND	Operating Temperature	-55°C ~ 150°C
Operating Position	1.120" (28.45mm)	Operating Force	99gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP65 - Dust Tight, Water Resistant
Features	-	Electrical Life	150,000 Cycles
Differential Travel	0.062" (1.6mm)	Current Rating	20A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Lever, Roller
