Home > Products > Switches > Snap Action, Limit Switches > HBS2KCB4SP011C

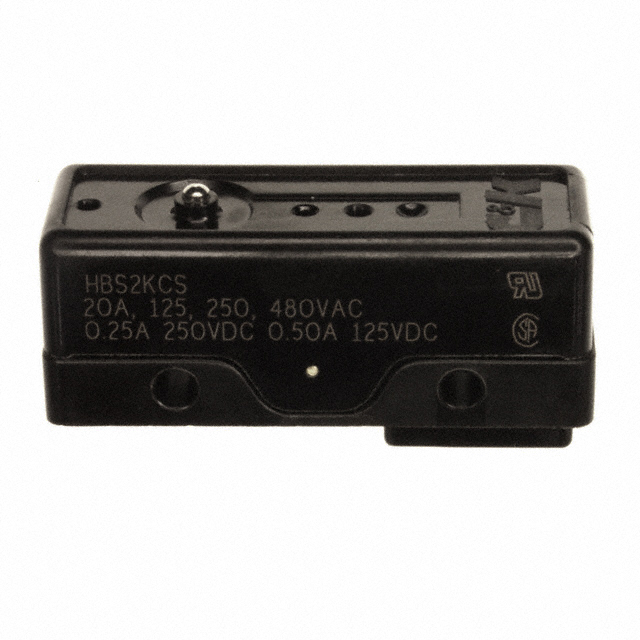

HBS2KCB4SP011C

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HBS2KCB4SP011C with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	HBS2KCB4SP011C
Manufacturer	C&K
Description	SWITCH SNAP ACTION SPDT 20A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 10314 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$5.239	$4.061	$3.848	$3.634
	$3.313	$3.10	$2.993	$2.886

Product parameter
Data sheet

Product parameter

Part Number	HBS2KCB4SP011C	Manufacturer	C&K
Description	SWITCH SNAP ACTION SPDT 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10314 pcs	Data sheet	HB Series Snap-Acting Datasheet
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-Mom	Series	HB
Release Force	113gf	Pretravel	0.020" (0.5mm)
Packaging	Bulk	Overtravel	0.005" (0.13mm)
Other Names	*HBS2KCB4SP011C CKN10029 HBS2KCB4 HBS2KCB4SP011C-ND	Operating Temperature	-55°C ~ 150°C
Operating Position	0.625" (15.9mm)	Operating Force	368gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP65 - Dust Tight, Water Resistant
Features	-	Electrical Life	150,000 Cycles
Differential Travel	0.002" (0.05mm)	Current Rating	20A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)
