Home > Products > Switches > Toggle Switches > ET23MD1ABE

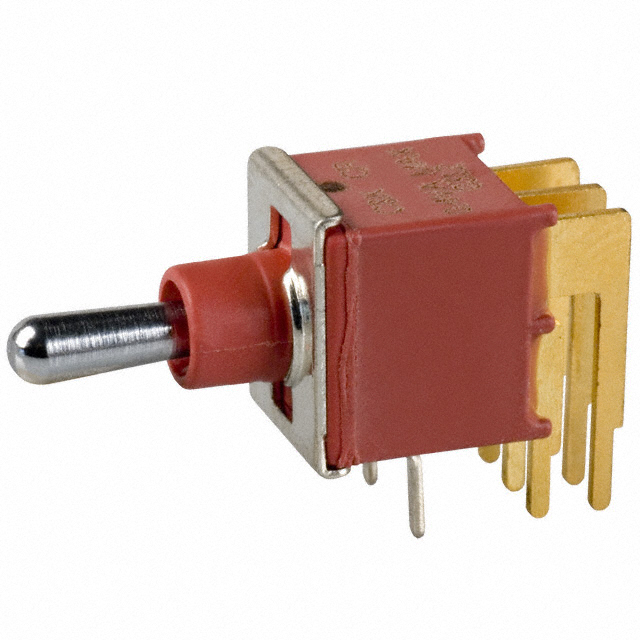

ET23MD1ABE

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ET23MD1ABE with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ET23MD1ABE
Manufacturer	C&K
Description	SWITCH TOGGLE DPDT 0.4VA 20V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 11690 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.99	$3.887	$3.782	$3.572
	$3.467	$3.362	$2.836	$2.731

Product parameter
Data sheet

Product parameter

Part Number	ET23MD1ABE	Manufacturer	C&K
Description	SWITCH TOGGLE DPDT 0.4VA 20V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11690 pcs	Data sheet	ET Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	20V
Voltage Rating - AC	20V	Termination Style	PC Pin
Switch Function	On-Off-On	Series	ET
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	*ET23MD1ABE CKN1177	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP57 - Dust Protected, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	30,000 Cycles
Detailed Description	Toggle Switch DPDT Through Hole, Right Angle	Current Rating	0.4VA (AC/DC)
Circuit	DPDT	Bushing Thread	Unthreaded
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	6.10mm
