E103SD1AV3GE

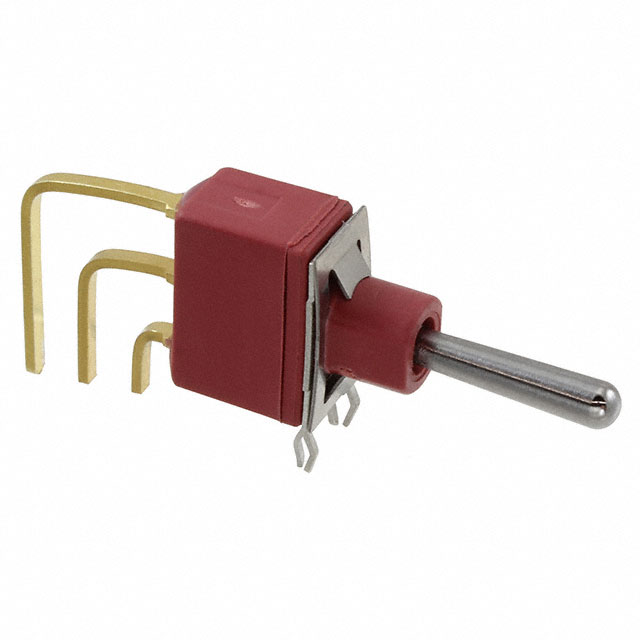

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy E103SD1AV3GE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy E103SD1AV3GE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | E103SD1AV3GE |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH TOGGLE SPDT 7.5A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.268 | $3.028 | $2.869 | $2.829 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.789 | $2.71 | $2.471 | $2.231 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | E103SD1AV3GE | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH TOGGLE SPDT 7.5A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15715 pcs | Data sheet | E Series Mini Toggle Datasheet |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 125V | Termination Style | PC Pin |
| Switch Function | On-Off-On | Series | E |
| Panel Cutout Dimensions | - | Packaging | Bulk |
| Other Names | *E103SD1AV3GE CKN11318 E103SD1AV3GE-ND |
Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Through Hole, Right Angle, Vertical | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP57 - Dust Protected, Waterproof | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Epoxy Sealed Terminals | Electrical Life | 40,000 Cycles |
| Detailed Description | Toggle Switch SPDT Through Hole, Right Angle, Vertical | Current Rating | 7.5A (AC/DC) |
| Circuit | SPDT | Bushing Thread | Unthreaded |
| Actuator Type | Standard Round | Actuator Material | Brass, Chrome Plated |
| Actuator Length | 12.70mm |
