Home > Products > Switches > Toggle Switches > E101SD1AME

E101SD1AME

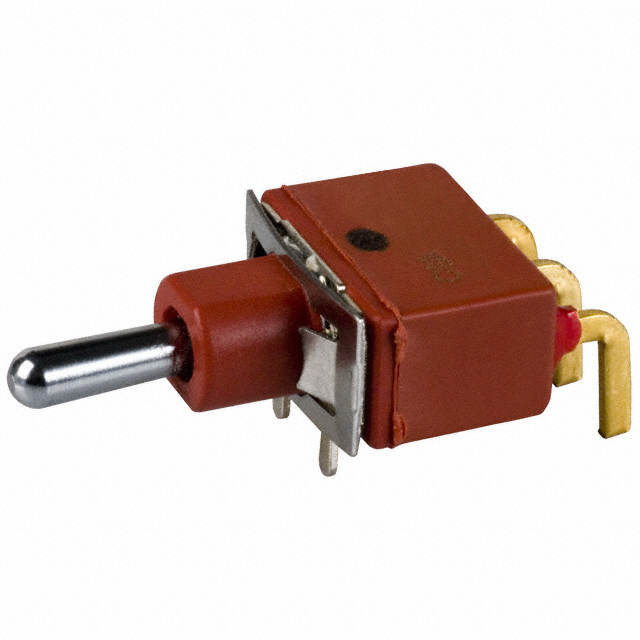

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy E101SD1AME with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	E101SD1AME
Manufacturer	C&K
Description	SWITCH TOGGLE SPDT 7.5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 25091 pcs
Reference Price (In US Dollars)	500 pcs
Reference Price (In US Dollars)	$1.485

Product parameter
Data sheet

Product parameter

Part Number	E101SD1AME	Manufacturer	C&K
Description	SWITCH TOGGLE SPDT 7.5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25091 pcs	Data sheet	E Series
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Function	On-On	Series	E
Panel Cutout Dimensions	-	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP57 - Dust Protected, Waterproof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Epoxy Sealed Terminals
Electrical Life	40,000 Cycles	Detailed Description	Toggle Switch SPDT Through Hole, Right Angle
Current Rating	7.5A (AC/DC)	Circuit	SPDT
Bushing Thread	Unthreaded	Actuator Type	Standard Round
Actuator Material	Brass, Chrome Plated	Actuator Length	12.70mm
