Home > Products > Switches > Rocker Switches > DM22J12S205Q

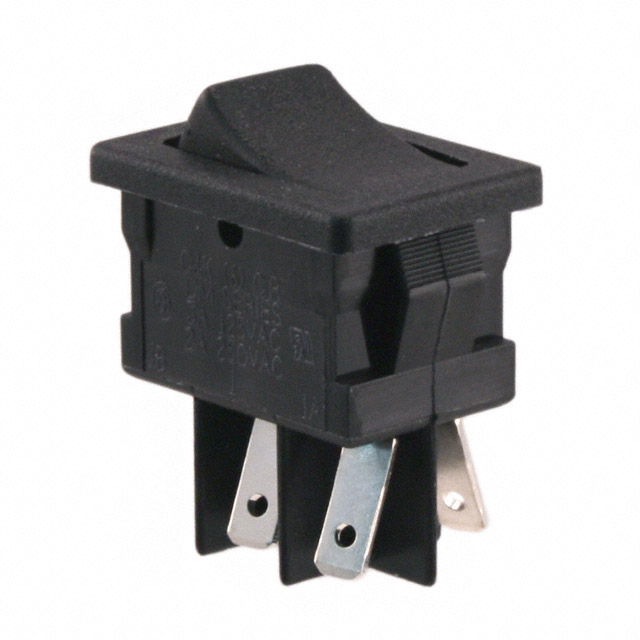

DM22J12S205Q

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DM22J12S205Q with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DM22J12S205Q
Manufacturer	C&K
Description	SWITCH ROCKER DPST 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 28417 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.92	$1.827	$1.736	$1.645
	$1.622	$1.576	$1.507	$1.325

Product parameter
Data sheet

Product parameter

Part Number	DM22J12S205Q	Manufacturer	C&K
Description	SWITCH ROCKER DPST 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28417 pcs	Data sheet	DM Series Mini Rocker Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.110" (2.8mm)	Switch Function	On-Off
Series	DM	Panel Cutout Dimensions	Rectangular - 19.20mm x 12.90mm
Packaging	Bulk	Other Names	*DM22J12S205Q CKN9843
Operating Temperature	-20°C ~ 65°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch DPST 3A (AC) 125V Panel Mount, Snap-In
Current Rating	3A (AC)	Color - Actuator/Cap	Black
Circuit	DPST	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
