Home > Products > Switches > Rocker Switches > DF72J12P215QA

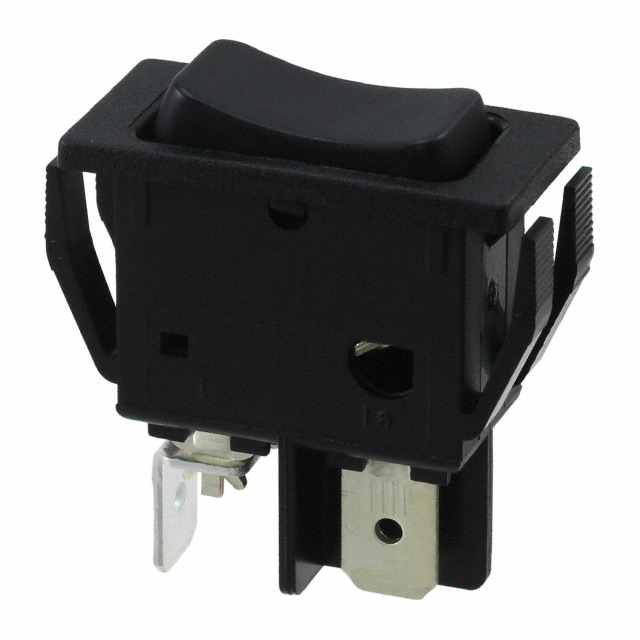

DF72J12P215QA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF72J12P215QA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DF72J12P215QA
Manufacturer	C&K
Description	SWITCH ROCKER SPDT 16A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 20615 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.659	$2.465	$2.335	$2.303
	$2.271	$2.206	$2.011	$1.816

Product parameter
Data sheet

Product parameter

Part Number	DF72J12P215QA	Manufacturer	C&K
Description	SWITCH ROCKER SPDT 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20615 pcs	Data sheet	DF Series Rocker Datasheet
Category	Switches	Voltage Rating - DC	48V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.250" (6.3mm)
Switch Function	On-On-Off	Series	DF
Panel Cutout Dimensions	Rectangular - 27.31mm x 12.50mm	Packaging	Bulk
Other Names	*DF72J12P215QA CKN10906 DF72J12P215QA-ND PTS645VM832LFS	Operating Temperature	-20°C ~ 85°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	10,000 Cycles
Detailed Description	Rocker Switch SPDT 16A (AC), 6A (DC) 125V Panel Mount, Snap-In	Current Rating	16A (AC), 6A (DC)
Color - Actuator/Cap	Black	Circuit	SPDT
Actuator Type	Concave (Curved)	Actuator Marking	No Marking
